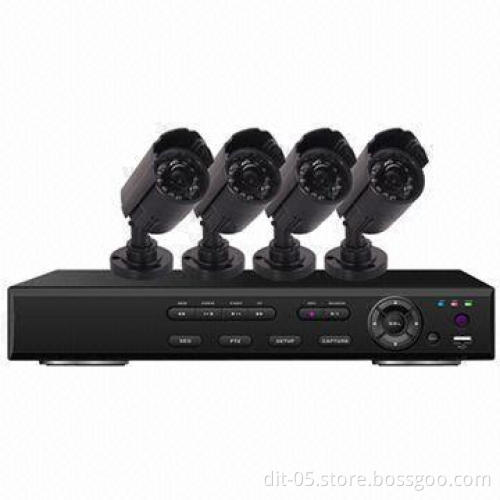

4CH Full D1 DVR, Supports Mobile Phone Live View and E-mail Alarm

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Video compression: H.264/ADPCM

Video system: HI3515

Operating system: Linux 2.6

Video in: 4CH 1.0Vp-p, 75Ω impedance, BNC

Video out: 2CH, BNC x 1, (1.0Vp-p,75Ω), VGA x 1

Audio input: 4CH, RCA

Audio output: 1CH, RCA

Display resolution: VGA x 1

Resolution: 1280 x 1024, CVBS x 1

PAL: 704 x 576
NTSC: 720 x 480

Frame rate:

PAL: 25fps
NTSC: 30fps

Record resolution: D1

PAL: 25fps
NTSC: 30fps

Frame rate: D1

PAL: 25fps
NTSC: 30fps

Feature-display: seq, privacy cover, digital zoom

Record modes: normal, manual, alarm, motion and schedule

HDD: 1 SATA interface, up to 2TB

Playback search: date, time, event, channel

USB interface: 3 x USB 2.0

PTZ control: 1 RS-485 interface (for PTZ control)

Alarm: 4CH-in /1CH-out

E-mail alarm: supported

Network interface: 1 x RJ-45, 10/100Mbps self-adaptive Ethernet interface

Network protocol: SMTP, UPNP, DDNS, PPPOE and more protocols

Network function: preview, download, playback and backup

Backup: USB HDD an d network

Playback mode: 4CH

Recording pack time: normal 60 minutes

Power supply: 12V/3A

VGA:

Resolution: 1280 x 1024P

Support smartphones

3G: Windows Mobile/Symbian/iPhone/Android/BlackBerry

AX dimensions: 330 x 260 x 50mm

Weight: 2.6kg (without hard disk)

Camera specifications:

Image sensor: 1/4-inch Sony super HAD CCD
Effective pixels:
- PAL: 500 (H) x 582 (V)
- NTSC: 510 (H) x 492 (V)
Signal system: PAL/NTSC
Sync system: internal
Horizontal resolution: 420TVL
Lens: 3.6mm/6mm lens selectable
Minimum illumination: 0 lux (IR on)
Backlight compensation: auto
Gain control: auto
Shutter speed: 1/50 (1/60) to 1/100,000s
White balance: auto
S/N ratio: more than 48dB (AGC off)
Video output: 1.0Vp-p, 75Ω (BNC)
Power requirement: 12V DC/140mA, 300mA (IR on)
Operation temperatures: -10 to 50°C

PAL: 704 x 576

NTSC: 720 x 480

PAL: 25fps

NTSC: 30fps

PAL: 25fps

NTSC: 30fps

PAL: 25fps

NTSC: 30fps

Resolution: 1280 x 1024P

Image sensor: 1/4-inch Sony super HAD CCD

Effective pixels:

PAL: 500 (H) x 582 (V)
NTSC: 510 (H) x 492 (V)

Signal system: PAL/NTSC

Sync system: internal

Horizontal resolution: 420TVL

Lens: 3.6mm/6mm lens selectable

Minimum illumination: 0 lux (IR on)

Backlight compensation: auto

Gain control: auto

Shutter speed: 1/50 (1/60) to 1/100,000s

White balance: auto

S/N ratio: more than 48dB (AGC off)

Video output: 1.0Vp-p, 75Ω (BNC)

Power requirement: 12V DC/140mA, 300mA (IR on)

Operation temperatures: -10 to 50°C

PAL: 500 (H) x 582 (V)

NTSC: 510 (H) x 492 (V)
