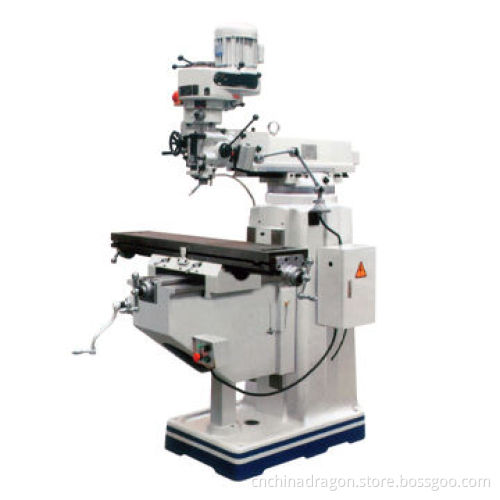

Universal radial milling machine, long travel of 950mm, cross travel of 420mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Table size: 254 x 1,370mm (10 x 54")

Long travel: 950mm

Cross travel: 420mm

Vertrical travel: 420mm

T-slot number and size: 3 x 16mm

RAM travel: 470mm

Distance from spindle nose to table surface: 0-20mm

Spindle hole taper standard: r8 optional: lso40

Spindle travel: 127mm

Spindle speed standard: 16 speeds (shift grade) 50Hz: 65-4500, 60Hz: 80-5440

Option (variable 065-3750)

Automatic quill feed three steps: 0.04 (0.0015")/0.08(0.003")/0.15(0.006")mm/revolution

Spindle motor: 3.75kW/5hp

Head swivel: 90°

Head tilting fix

Dimensions of packaging:

1 miller per case

2 miller per case

3 miller per case
