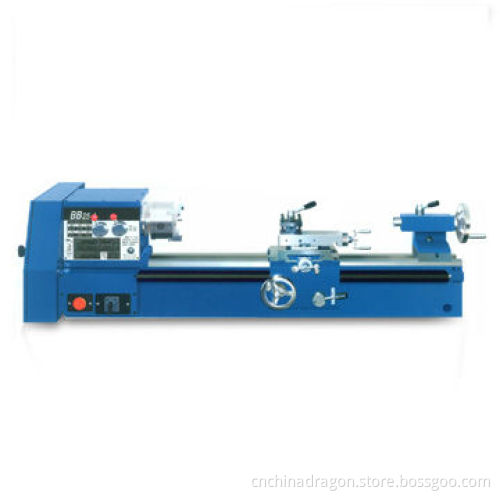

Lathe Machine with Maximum Length of Workpiece Between Centers of 450.700mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Maximum swing diameter over bed: 250mm

Maximum workpiece diameter over carriage: 130mm

Maximum length of workpiece between centers: 450.700mm

Maximum cutting length: 420.660mm

Taper of hole in spindle/hole: mt no.4/27

Range of spindle speed (6steps): 115 to 1,620rpm

Range of carriage longitudinal feed per revolution of spindle:0.05 to 0.1mm/r

Range of screw thread (metric/inch)

20 kinds: 0.2 to 3.5/8 to 56t.p.i

Range of screw thread(mod)10 kinds: 0.2 to 1.25

Motor: 0.37, 0.55kW

Maximum drilling diameter: 16mm

Maximum diameter of vertical milling cutter: 20mm

Maximum diameter of vertical milling face: 63mm

Taper of hole in spindle nose: mt no.3

Maximum distance between spindle box: 160mm

Maximum quill movement of spindle: 80mm

Maximum horizontal rotation of spindle box around column:±180 degrees

Maximum inclination of spindle box (left right): ±90degrees

Range of spindle speed (4steps): 400 to 1,640rpm

Motor: 0.37, 0.55kW
