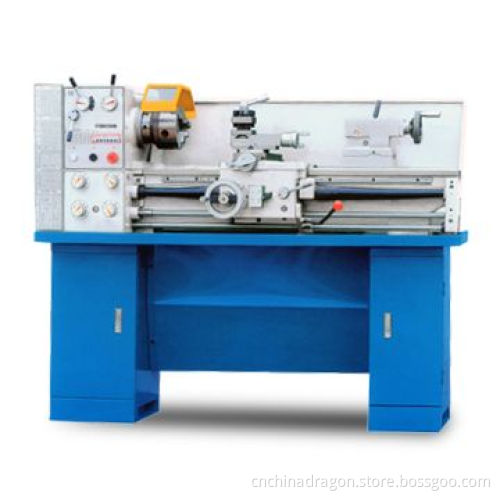

Bench Lathe with 320mm Swing Over Bed and 30/36/40-inch Distance between Center
  • Bench Lathe with 320mm Swing Over Bed and 30/36/40-inch Distance between Center
Bench Lathe with 320mm Swing Over Bed and 30/36/40-inch Distance between Center

Bench Lathe with 320mm Swing Over Bed and 30/36/40-inch Distance between Center

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Swing over bed: 320 mm
    • Swing over-cross slide: 198mm
    • Swing in gap: 476mm
    • Distance between center: 30/36/40 inches
    • Spindle bore: 38mm
    • Taper of spindle bore: MT5
    • Range of spindle speed: 65 to 1,810rpm
    • Longitudinal feeds range: 0.079 to 1.291mm/rev
    • Cross feeds range: 0.017 to 0.276mm/rev
    • Metric threads range: 0.4 to 7mm
    • Inch threads range: 4 to 60tpi
    • Travel of tailstock sleeve: 100mm
    • Taper of tailstock quill: MT3
    • Power of motor: 1.1kW
