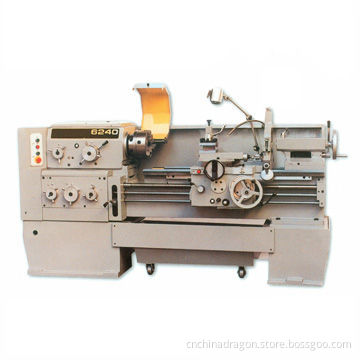

Lathe Machine with 12mm Lead Screw Pitch and 7.5kW Motor Power
  • Lathe Machine with 12mm Lead Screw Pitch and 7.5kW Motor Power
Lathe Machine with 12mm Lead Screw Pitch and 7.5kW Motor Power

Lathe Machine with 12mm Lead Screw Pitch and 7.5kW Motor Power

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Swing over-bed 400mm (16 inches)
    • Swing over-gap 630mm (25 inches)
    • Effective width of gap 240mm (10 inches)
    • Swing over carriage 220mm (9 inches)
    • Maximum length of workpiece: 750, 1,000, 1,500, 2,000, and3,000mm (29, 40, 60, 80, 118 inches)
    • Range of spindle speeds 24 steps 9 to 1,600rpm
    • Spindle tape M6 (metric) no (1:20)
    • Spindle hole: 82
    • Spindle nose: D-8
    • Longitudinal feeds 93 kinds 0.028 to 6.43mm/rev
    • Cross feeds 93 kinds 0.012 to 2.73mm/rev
  • Standard accessories:
  • Lead screw pitch: 12mm
  • Three jaw chuck metric thread range 48 kinds: 0.5 to 224
  • Four jaw chuck inch thread range 48 kinds: 72 to 1/8TPI
  • Driving plate module thread range 42 kinds: 0.5 to 112
  • Face plate diametrical pitch thread range 45 kinds:56-1/4DP
  • Follower rest diameter of tailstock quill: 75mm
  • Steady rest morse taper of tailstock quill no.5
  • Live center maximum travel of tailstock quill: 150mm (6inches)
  • Coolant system main motor power: 7.5kW
  • Working light machine overall dimensions:
    • 750 = 2,375 x 1,043 x 1,275mm
    • 1,000 = 2,625 x 1,043 x 1,275mm
    • 1,500 = 3,125 x 1,043 x 1,275mm
    • 2,000 = 3,625 x 1,043 x 1,275mm
    • 3,000 = 4,625 x 1,043 x 1,275mm
  • Center and center sleeve net weight:
  • 750mm = 1,900kg
  • 1,000mm = 2,050kg
  • 1,500mm = 2,250kg
  • 2000mm = 2,450kg
  • 3,000mm = 2,650kg
  • Swing over-bed 400mm (16 inches)
  • Swing over-gap 630mm (25 inches)
  • Effective width of gap 240mm (10 inches)
  • Swing over carriage 220mm (9 inches)
  • Maximum length of workpiece: 750, 1,000, 1,500, 2,000, and3,000mm (29, 40, 60, 80, 118 inches)
  • Range of spindle speeds 24 steps 9 to 1,600rpm
  • Spindle tape M6 (metric) no (1:20)
  • Spindle hole: 82
  • Spindle nose: D-8
  • Longitudinal feeds 93 kinds 0.028 to 6.43mm/rev
  • Cross feeds 93 kinds 0.012 to 2.73mm/rev
  • 750 = 2,375 x 1,043 x 1,275mm
  • 1,000 = 2,625 x 1,043 x 1,275mm
  • 1,500 = 3,125 x 1,043 x 1,275mm
  • 2,000 = 3,625 x 1,043 x 1,275mm
  • 3,000 = 4,625 x 1,043 x 1,275mm
