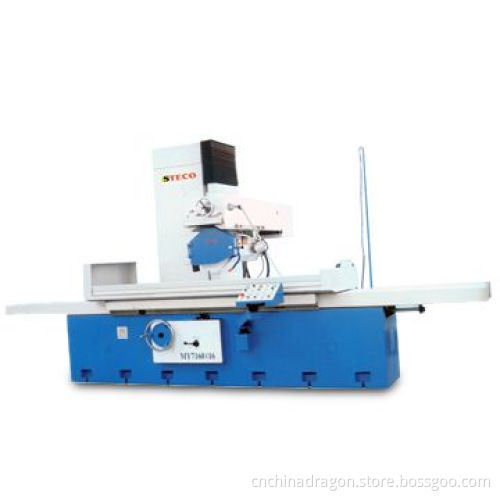

Metal-cutting Machines, Table Size 600 x 1,600mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table size(L x W)(mm): 600 x 1,600

Max.distance from spindle axis to table surface(mm): 950

Max. table longitudinal travel(mm): 1,700

Max. wheelhead cross travel(mm): 680

Max.wheelhead vertical travel(mm): 750

Feed on vertival feed handwheel(mm):

Wheel size(mm): 400 x 75 x 203

Spindle speed(r/min): 1,440

Motors total power(kw): 17.67

Wheel spindle motor(kw): 11

Oil pump motor(kw): 5.5

Parallelism of machining surface to reference surface(mm):0.005/300

Surface roughness: 0.63

N./G. weight(kg): 7,100/8,100

Packing dimensions(L x W x H)(cm): 440 x 210 x 268

Per grad. 0.005

Per rev. 0.5
