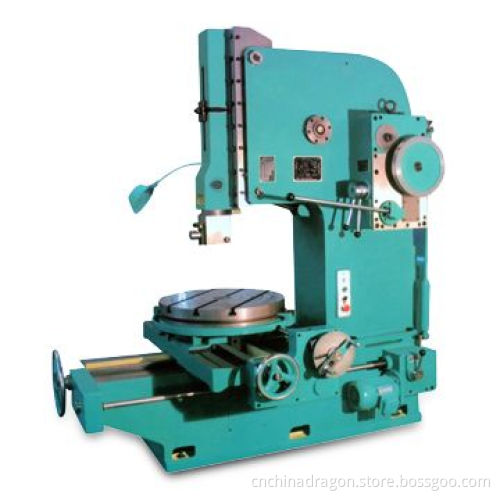

Slotting Machine with 360° Table Maximum Rotary Angle

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum slotting length: 200mm

Number of ram reciprocation per minute: 32, 50, 80, and125

Inclination of ram: 0 to 8°

Vertical adjustment of ram: 200mm

Diameter to table: 460mm

Distance from tool holding surface to column front: 480mm

Distance from table surface to: 320mm

Maximum longitudinal travel of table: 420mm

Maximum cross travel of table: 420mm

Maximum rotary angle of table: 360°

Range of longitudinal and cross: 0.054 to 1.24

Range of rotary feeds of table: 0.035 to 0.805°

Maximum load of table: 400kg

Power of main motor: 3kW

Power of motor for rapid traverse: 0.75kW

Speed of main motor: 1,420r/minute

Speed of motor for rapid traverse: 1,380r/minute

Overall dimensions: 1,717 x 1,221 x 1,885r/minute

Net weight: 2,200kg (approximately)
