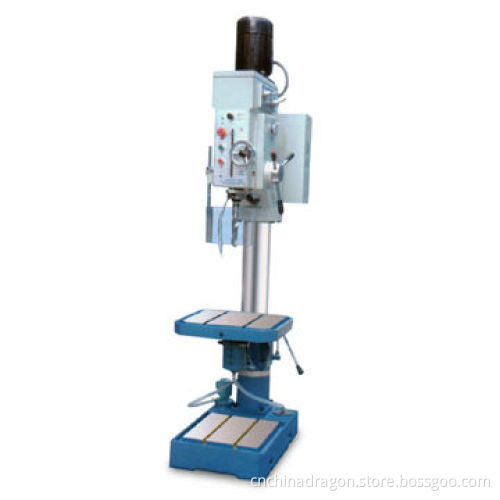

Vertical Drilling Machine with 40mm Maximum Drilling Diameter, 200mm Spindle Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum drilling diameter: 40mm

Maximum tapping capacity: M27

Distance spindle axis to column: 330mm

Distance spindle nose to worktable surface: 630

Distance spindle nose to base surface: 1,200mm

Spindle travel: 200mm

Maximum travel of worktable and bracket: 520

Rotation of worktable and bracket in transverse plane: ±45°

Spindle taper: MT4

Spindle speed range: 67, 100, 140, 210, 300, 450, 555, 775, 1,170, 1,640, 2,500r/minute, 12 steps

Spindle feed: 0.1, 0.2, and 0.3

Column diameter: Ø140mm

Worktable size: 150 x 390mm

Base dimensions : 410 x 395mm

T-slot no and width of worktable and base: 2-14

Main motor Y 100L2-4v1: 1.5/2.2kW, 380V, 940/1420r/minute

Three-phase pump DB-6A: 40W, 380V, 6L/minute

Magnetic clutch DLY0-25S: 24W, 24V

Contour of machine tool: 920 x 560 x 2,295mm

Net weight: 500kg

Gross weight: 550kg

Ship measurement: 1,050 x 650 x 2,150mm

Loading amount: 15 pieces/20ft container
