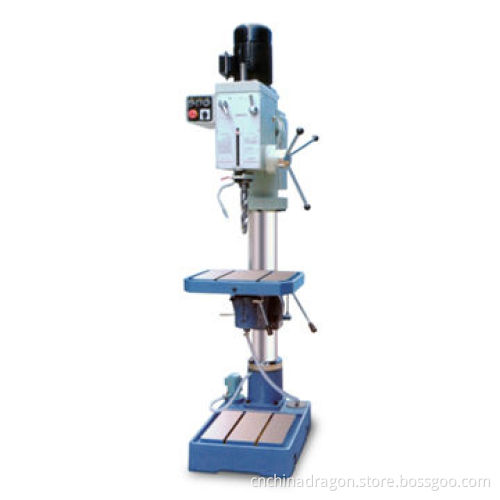

Vertical Drilling Machine with 45mm Maximum Drilling Diameter, 150mm Spindle Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum drilling capacity: 45mm

Maximum tapping capacity: M42 x 4mm

Distance spindle axis to column: 330mm

Distance spindle nose to worktable surface: 630mm

Distance spindle nose to base surface: 1,200mm

Spindle travel: 150mm

Rotation of worktable and bracket in transverse plane: ±45°

Spindle taper: MT4

Spindle speed range: 67, 104, 154, 236, 327, 504, 746 and 1,147r/minute

Column diameter: Ø140

Worktable size: 450 x 390mm

Base dimensions: 410 x 395mm

Double-speed 3-phase AC motor: 1.5/2.2kW, 380V, 910/1400r/minute

Three-phase pump: DB-12B 40W, 380V, 6L/minute

Contour of machine tool: 780 x 630 x 2,160

Net weight: 550kg

Gross weight: 590kg

Ship measurement: 1,040 x 700 x 2,250mm

Loading amount: 15 pieces/20ft container
