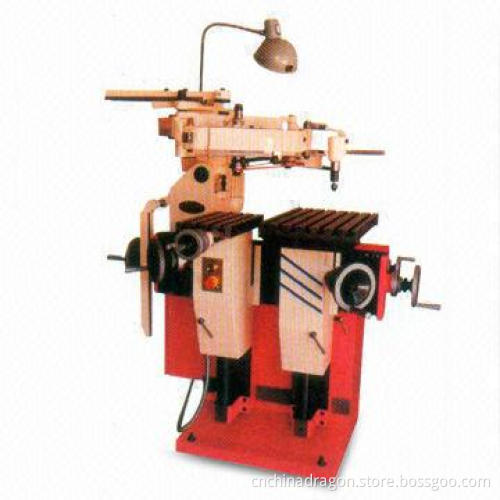

Three Dimensional Pantograph Engraving Machine with Table Size of 360 x 200mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Maximum milling length (at reduced scale 1:1.5): 250mm

Maximum milling width (at reduced scale 1:1.5): 220mm

Distance between centers of pantograph: 420mm

Range of engraving proportion: 1:1.5-1:8

Worktable size: 360 x 200mm

Travel of worktable: longitudinal/cross/vertical: 300/160/360mm

Copy table size: 500 x 320mm

Travel of copy table: longitudinal/vertical: 200/320mm

Rotational range of copy table: 360

Max distance from spindle nose to working table surface: 360mm

Spindle: raplid travel/micro-movement travel: 6mm/1mm

Spindle speed: steps/range: 12 steps/1,600-20,000rpm

Clamping diameter of spring collets: 3, 4, 6, 8, 10mm

Motor power/voltage: 0.37kW/220, 380, 420, 440V

Motor speed/frequency: 2,840rpm/50Hz

Overall dimensions/net weight: 140 x 93 x 140cm/690kg

Packing dimensions/gross weight: 165 x 115 x 182cm/940kg
