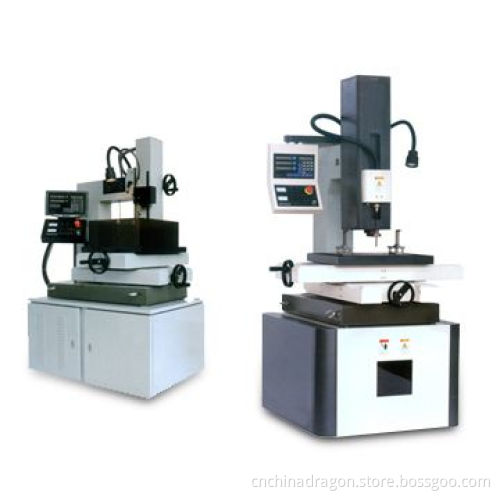

Hole Drilling Machine with 7MPa Pump Pressure and 500 x 760mm Work Table

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Electrode diameter: 0.5 to 4.0mm

Spindle travel: 450mm

Z-axis servo travel: 500mm

C-axis rev: 220mm

Work table size: 500 x 760mm

X - Y: 400 x 500mm

The maximum space between guide and work table: 500mm

Maximum working current: 25A

Maximum power supply: 2.5kW/380V

Work flume capacity: 25L

Maximum pump pressure: 7MPa

Mainframe exterior size: 1,850 x 1,400 x 1,600mm

Machine weight: 2,000kg
