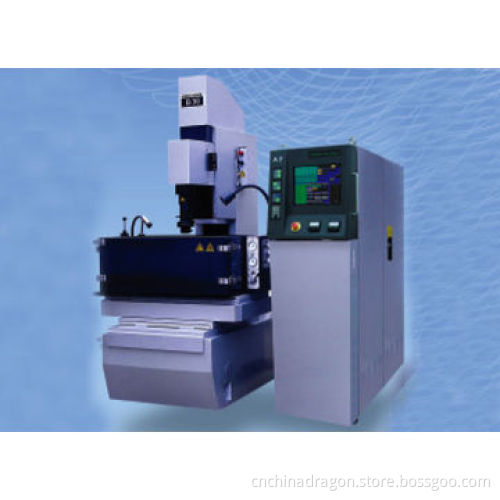

High Precision EDM Forming Machine with Up to 430L Maximum Capacity of Working Liquid Tank
  • High Precision EDM Forming Machine with Up to 430L Maximum Capacity of Working Liquid Tank
  • High Precision EDM Forming Machine with Up to 430L Maximum Capacity of Working Liquid Tank
High Precision EDM Forming Machine with Up to 430L Maximum Capacity of Working Liquid Tank
High Precision EDM Forming Machine with Up to 430L Maximum Capacity of Working Liquid Tank

High Precision EDM Forming Machine with Up to 430L Maximum Capacity of Working Liquid Tank

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Machine part
  • Worktable dimensions (length x width ):
    • 600 x 400mm (B30/B35)
    • 800 x 500mm (B50)
  • Inside dimensions of the working liquid tank:
    • 950 x 630 x 412mm
    • 990 x 640 x 450mm
    • 1,200 x 840 x 540mm
  • Liquid level adjusting scope:
    • 48 to 198mm
    • 110 to 292mm
    • 176 to 380mm
  • Maximum capacity of working liquid tank: 170, 200 and 430L
  • Worktable traveling distance:
    • 300 x 2,10 x 270mm
    • 350 x 250 x 270mm
    • 500 x 400 x 350mm
  • Maximum work piece dimensions:
    • 900 x 585 x 270mm
    • 900 x 600 x 280mm
    • 1,050 x 800 x 350mm
  • Maximum work piece weight: 400/400/800kg
  • Maximum minimum distance from worktable surface to electrodeboard:
    • 295 to 565mm
    • 300 to 600mm
    • 350 to 700mm
  • Positioning accuracy (JIS standard): 5μm/any100mm/5μm/any 100mm/8μm/any 200mm
  • Repetitive positioning accuracy (JIS standard): 2μm
  • Outside dimensions of the machine:
    • 1,300 x 1,300 x 2,241mm
    • 1,333 x 1,586 x 2,340mm
    • 1,600 x 1,800 x 2,500mm
  • Machine weight (NC power supply not included):2,000/2,200/4,000kg
  • Oil tank specification:
    • Outside dimensions of the tank:
      • 1,560 x 700 x 1,037mm
      • 1,250 x 1,450 x 1,024mm
      • 1,590 x 1,882 x 1,165mm
    • Tank capacity: 400/600/1,200L
  • 600 x 400mm (B30/B35)
  • 800 x 500mm (B50)
  • 950 x 630 x 412mm
  • 990 x 640 x 450mm
  • 1,200 x 840 x 540mm
  • 48 to 198mm
  • 110 to 292mm
  • 176 to 380mm
  • 300 x 2,10 x 270mm
  • 350 x 250 x 270mm
  • 500 x 400 x 350mm
  • 900 x 585 x 270mm
  • 900 x 600 x 280mm
  • 1,050 x 800 x 350mm
  • 295 to 565mm
  • 300 to 600mm
  • 350 to 700mm
  • 1,300 x 1,300 x 2,241mm
  • 1,333 x 1,586 x 2,340mm
  • 1,600 x 1,800 x 2,500mm
  • Outside dimensions of the tank:
    • 1,560 x 700 x 1,037mm
    • 1,250 x 1,450 x 1,024mm
    • 1,590 x 1,882 x 1,165mm
  • Tank capacity: 400/600/1,200L
  • 1,560 x 700 x 1,037mm
  • 1,250 x 1,450 x 1,024mm
  • 1,590 x 1,882 x 1,165mm
