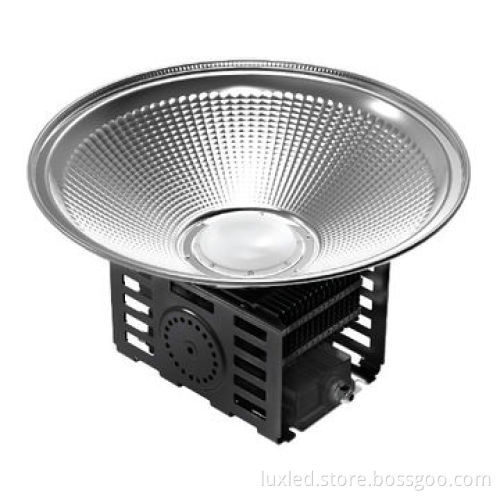

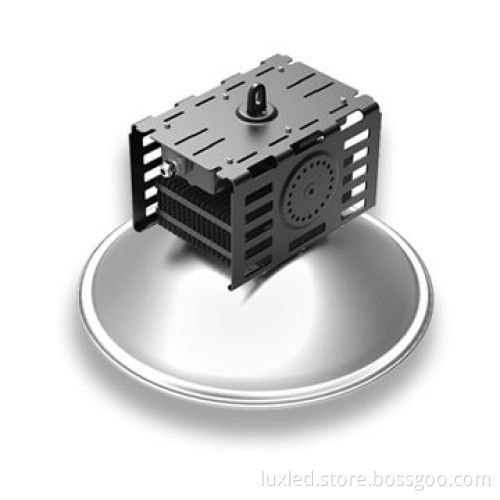

200W LED High Bay Light Cree, High Quality, CE and RoHS Marks

200W LED High Bay Light Cree, High Quality, CE and RoHS Marks

Get Latest Price

Payment Type:: T/T, L/C, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Specifications:

Product name: Cree XTE 2014 year new design LED high bay light 150W
Input voltages: AC 90-305V
Colors: CW, PW,WW
LED efficiency: >130 lm/w
Color rendering index (CRI): Ra≥70
Higher CRI higher price, highest CRI could be 90Ra
Working temperature range: -40 ºC ~ 50 ºC
Lifespan for LED lighting source: > 50,000 hours
Certification: CE & RoHS & FCC & SGS & KEMA
Manufacturer: Shenzhen Lux lighting Co.,Ltd
Lamp power:100/150/200W optional

Parameters:

Name: LED high bay light Cree XTE series 150W
Model no.: LX-H-GK150W-CreeE XTE
LED chip: Cree XTE 66pcs (700mA 3.0V)
Meanwell driver: HLG-150H-36A
Maximum system power: 150W
Nominal voltages(V): AC 100-240V /277V 50/60Hz
Maximum currents: AC120V -1.3A; AC240V -0.65A
Power factor(PF): >0.95
Power efficiency: >90%
Total harmonic distortion(THD): < 15%
Storage temperature range: -40°C--+80°C
Working environment range: -35°C--+70°C ; 10%-95%RH
LED chip junction temperatures: Tj:80°C±10%
IP rating: IP65
Lumen output +lumen tolerance range: +/- 5%
CW 6000K: >17400lm >115lm/W
Cool white: 5500-7000K
Pure white: 4500-5000K
Warm white: 2600-3500K
CRI: Ra>70
Minimum: Ra70
Maximum: Ra90
Working lifetime> 50,000hrs
Heat radiator: Anodized aluminum
Lens: PC
Lamp reflector:110°
Product body net weight: 4kg
Packing type: 1 unit(s)/ctn
Packing dimension: 31*25*28cm/1pcs
Packing weight: 5kg

Product name: Cree XTE 2014 year new design LED high bay light 150W

Input voltages: AC 90-305V

Colors: CW, PW,WW

LED efficiency: >130 lm/w

Color rendering index (CRI): Ra≥70

Higher CRI higher price, highest CRI could be 90Ra

Working temperature range: -40 ºC ~ 50 ºC

Lifespan for LED lighting source: > 50,000 hours

Certification: CE & RoHS & FCC & SGS & KEMA

Manufacturer: Shenzhen Lux lighting Co.,Ltd

Lamp power:100/150/200W optional

Name: LED high bay light Cree XTE series 150W

Model no.: LX-H-GK150W-CreeE XTE

LED chip: Cree XTE 66pcs (700mA 3.0V)

Meanwell driver: HLG-150H-36A

Maximum system power: 150W

Nominal voltages(V): AC 100-240V /277V 50/60Hz

Maximum currents: AC120V -1.3A; AC240V -0.65A

Power factor(PF): >0.95

Power efficiency: >90%

Total harmonic distortion(THD): < 15%

Storage temperature range: -40°C--+80°C

Working environment range: -35°C--+70°C ; 10%-95%RH

LED chip junction temperatures: Tj:80°C±10%

IP rating: IP65

Lumen output +lumen tolerance range: +/- 5%

CW 6000K: >17400lm >115lm/W

Cool white: 5500-7000K

Pure white: 4500-5000K

Warm white: 2600-3500K

CRI: Ra>70

Minimum: Ra70

Maximum: Ra90

Working lifetime> 50,000hrs

Heat radiator: Anodized aluminum

Lens: PC

Lamp reflector:110°

Product body net weight: 4kg

Packing type: 1 unit(s)/ctn

Packing dimension: 31*25*28cm/1pcs

Packing weight: 5kg
