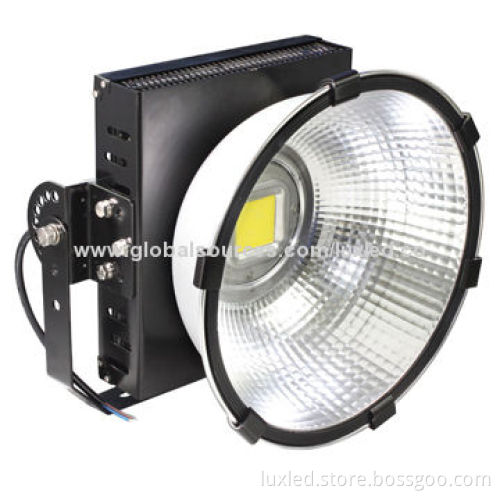

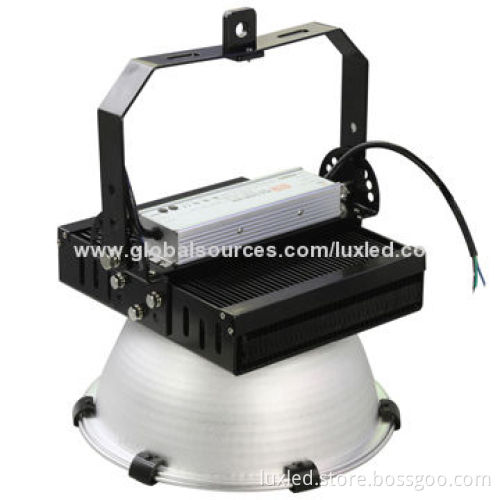

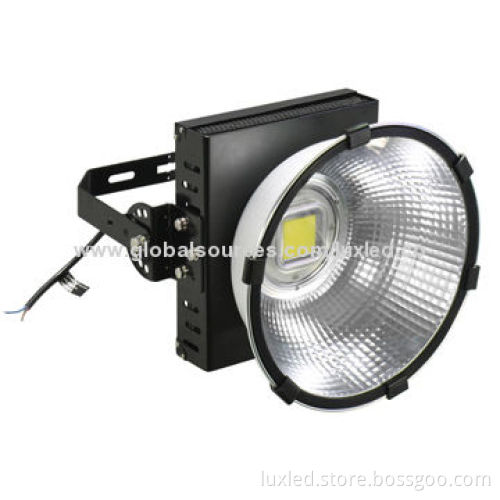

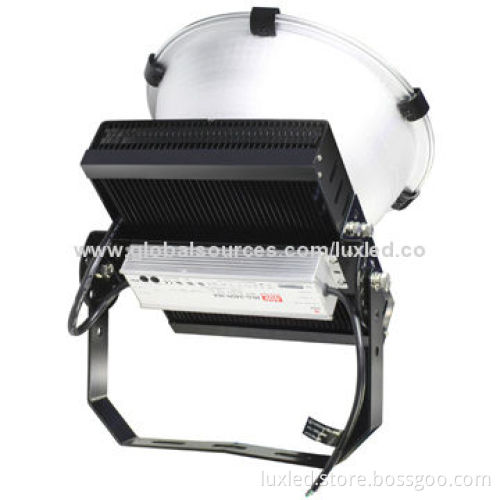

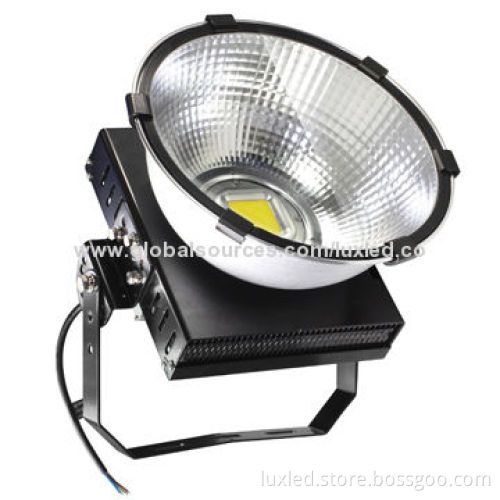

LED High Bay Light, 100W with Die-casting Aluminum Alloy, 90-305V AC Voltage

LED High Bay Light, 100W with Die-casting Aluminum Alloy, 90-305V AC Voltage

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Specifications:

Input voltage: 90-305V AC
Colors: cool, pure, warm white
LED efficiency: >130lm/W
Color rendering index: ≥70Ra
Higher CRI higher price, highest CRI could be 90Ra
Working temperature: -40 to 50ºC
Lifespan for LED lighting source: >50,000 hours
Certifications: CE, RoHS, FCC, SGS, KEMA
LED quantity: Cree XTE 45 pieces
Meanwell driver: HLG-240H-36A
Maximum system power: 100W
Nominal voltage: 100-240/277V AC, 50/60Hz
Maximum current: 120V AC, 1.3A, 240V AC, 0.65A
Power factor: >0.95
Power efficiency: >90%
Total harmonic distortion: <15%
Storage temperature: -40 to +80°C
Working environments: -35 to +70°C, 10-95% RH
LED chip junction temperature Tj: 80°C ±10%
IP rating: IP65
Lumen output + lumen tolerance: ±5%
Cool white (6,000K): >1,7400lm, >1,15lm/W
Color temperature:
- Cool white: 5,500-7,000K
- Pure white: 4,500-5,000K
- Warm white: 2,600-3,500K
CRI:
- Minimum: 70Ra
- Maximum: 90Ra
Working lifetime: >50,000 hours
Heat-radiator: anodized aluminum
Lens: PC
Lamp reflector: 110°
Product body net weight: 13kg
Packing type: 1 unit/carton
Packing dimensions: 45*40*37.5cm
Packing weight: 13kg

Features:

2014 newest design, adopt high-lumen USA original Cree XTE LED chip
Lumen efficiency of leds can be 130lm/W
With CE, RoHS, FCC, EMC, LVD certifications
We have other design: Cree XML-2/Bridgelux 45-mil/5630 SMD sanan chip LED high bay light for different customers
5 years Meanwell driver
Emitting colors are available: warm white, pure white, cool white and more
Silver/black housing to choose
IES file could provide
45/60/80/90/110/120 degrees lamp shade (optional)

Input voltage: 90-305V AC

Colors: cool, pure, warm white

LED efficiency: >130lm/W

Color rendering index: ≥70Ra

Higher CRI higher price, highest CRI could be 90Ra

Working temperature: -40 to 50ºC

Lifespan for LED lighting source: >50,000 hours

Certifications: CE, RoHS, FCC, SGS, KEMA

LED quantity: Cree XTE 45 pieces

Meanwell driver: HLG-240H-36A

Maximum system power: 100W

Nominal voltage: 100-240/277V AC, 50/60Hz

Maximum current: 120V AC, 1.3A, 240V AC, 0.65A

Power factor: >0.95

Power efficiency: >90%

Total harmonic distortion: <15%

Storage temperature: -40 to +80°C

Working environments: -35 to +70°C, 10-95% RH

LED chip junction temperature Tj: 80°C ±10%

IP rating: IP65

Lumen output + lumen tolerance: ±5%

Cool white (6,000K): >1,7400lm, >1,15lm/W

Color temperature:

Cool white: 5,500-7,000K
Pure white: 4,500-5,000K
Warm white: 2,600-3,500K

CRI:

Minimum: 70Ra
Maximum: 90Ra

Working lifetime: >50,000 hours

Heat-radiator: anodized aluminum

Lens: PC

Lamp reflector: 110°

Product body net weight: 13kg

Packing type: 1 unit/carton

Packing dimensions: 45*40*37.5cm

Packing weight: 13kg

Cool white: 5,500-7,000K

Pure white: 4,500-5,000K

Warm white: 2,600-3,500K

Minimum: 70Ra

Maximum: 90Ra

2014 newest design, adopt high-lumen USA original Cree XTE LED chip

Lumen efficiency of leds can be 130lm/W

With CE, RoHS, FCC, EMC, LVD certifications

We have other design: Cree XML-2/Bridgelux 45-mil/5630 SMD sanan chip LED high bay light for different customers

5 years Meanwell driver

Emitting colors are available: warm white, pure white, cool white and more

Silver/black housing to choose

IES file could provide

45/60/80/90/110/120 degrees lamp shade (optional)
