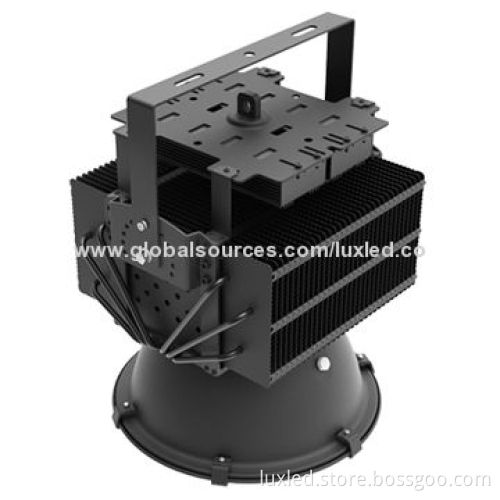

500W LED High Bay Light, 90-305V AC/Meanwell Driver Input Voltage, 47-63Hz Frequency Range

500W LED High Bay Light, 90-305V AC/Meanwell Driver Input Voltage, 47-63Hz Frequency Range

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Main technology index:

Model No.LX-TG367-500W- CREE XML-2
Equivalent: 1,000-1,500W high-pressure sodium lamp
LED light source: 102 pieces original Cree XML-2 LEDs
LED luminous efficiency:＞120-130lm/W
Lamp total power: 500W
Power efficiency: >95%
LED luminous flux: >5,7000lm
Lamp rated luminous flux: >52,000lm
Lamp rated luminous efficiency: >100lm/W
Color rendering index (CRI): >75Ra, 70-90Ra
Color temperature:
Cool white: 5,700-8,000K
Pure white: 4,500-5,500K
Warm white: 2,700-3,500K
Beam angle: 25- 60- 90-120°
Light distribution curve (beam pattern)
Asymmetric (bat wing)/rectangular beam
Input voltage: 90-305V AC/Meanwell driver
Frequency range: 47-63Hz
Power factor: >0.95
Total harmonic distortion: <15%
Storage temperature:－40 - +80℃
Working environment:－40 - +50℃, 10 - 95% RH
Junction temperature: 60℃ ± 10% (ta=25℃)
Light body and lampshade material: aluminum alloy
Working lifetime:> 50,000 hours
IP rating: IP65

Packing:

Net weight: 12.8kg
Gross weight: 15.4kg
Size: 50*50*60cm/1 piece

The main application areas:

Apply to the vessel/ship big or small port, gymnasium, lighting engineering, square, golf courses, ships, airport, subway station, panoramic view, highway toll booth, exhibition hall, the lighting of building construction, gas stations, overpasses, outdoor billboards and other lighting places

Model No.LX-TG367-500W- CREE XML-2

Equivalent: 1,000-1,500W high-pressure sodium lamp

LED light source: 102 pieces original Cree XML-2 LEDs

LED luminous efficiency:＞120-130lm/W

Lamp total power: 500W

Power efficiency: >95%

LED luminous flux: >5,7000lm

Lamp rated luminous flux: >52,000lm

Lamp rated luminous efficiency: >100lm/W

Color rendering index (CRI): >75Ra, 70-90Ra

Color temperature:

Cool white: 5,700-8,000K

Pure white: 4,500-5,500K

Warm white: 2,700-3,500K

Beam angle: 25- 60- 90-120°

Light distribution curve (beam pattern)

Asymmetric (bat wing)/rectangular beam

Input voltage: 90-305V AC/Meanwell driver

Frequency range: 47-63Hz

Power factor: >0.95

Total harmonic distortion: <15%

Storage temperature:－40 - +80℃

Working environment:－40 - +50℃, 10 - 95% RH

Junction temperature: 60℃ ± 10% (ta=25℃)

Light body and lampshade material: aluminum alloy

Working lifetime:> 50,000 hours

IP rating: IP65

Net weight: 12.8kg

Gross weight: 15.4kg

Size: 50*50*60cm/1 piece

Apply to the vessel/ship big or small port, gymnasium, lighting engineering, square, golf courses, ships, airport, subway station, panoramic view, highway toll booth, exhibition hall, the lighting of building construction, gas stations, overpasses, outdoor billboards and other lighting places
