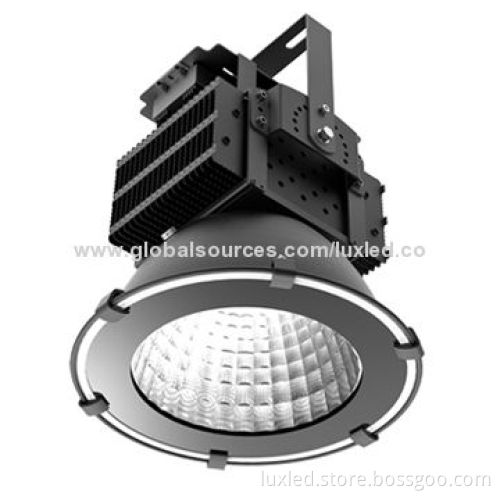

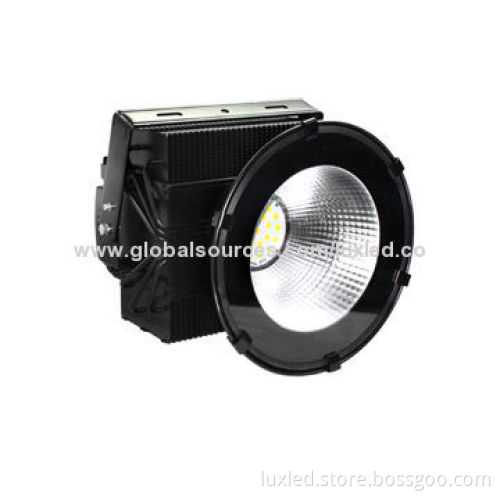

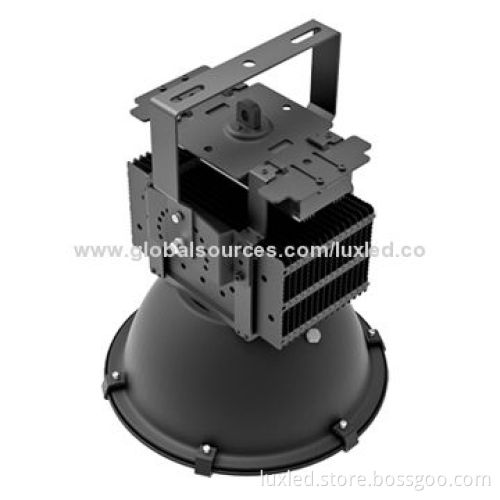

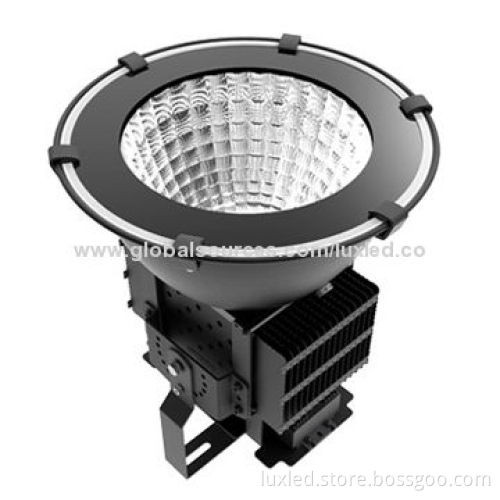

150W LED High Bay Light with Cree XML-2 LEDs, Meanwell Driver

150W LED High Bay Light with Cree XML-2 LEDs, Meanwell Driver

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Main technology index:

Model No.LX-TG367-150W Cree XML-2
Equivalent: 350-400W high-pressure sodium lamp
LED light source 30 pieces original Cree XML-2 LED
LED luminous efficiency: >120-130lm/W Cree XML-2
Lamp total power: 150 ±2W
Power efficiency: >92%
LED luminous flux: >16,380lm
Lamp rated luminous flux: >15,000lm
Lamp rated luminous efficiency: >100lm/W
Color rendering index: >75Ra
Color temperature:
- Cool white: 6,000-7,000K
- Pure white: 4,500-5,500K
- Warm white: 2,700-3,500K
Beam angle: 25/45/60/90/100°
Light distribution curve (beam pattern)
Asymmetric (bat wing)/rectangular beam
Input voltage: 90-305V AC/Meanwell driver (HLG-150H-48A)
Frequency range: 47-63Hz
Power factor: >0.95
Total harmonic distortion: <15%
Storage temperature: -40-80℃
Working environment temperature and humidity: -40-50℃, 10-95% RH
Junction temperature: 60℃ ±10% (TA =25℃)
Light body and lampshade material
Aluminum alloy
Working lifetime: > 50,000 hours
IP rating: IP65
Net weight: 8.9kg
Gross weight: 10.9kg
Package size: 48 x 48 x 52cm (1 piece)

The main application areas:

Apply to the vessel/ship big or small port, gymnasium, lighting engineering, square, golf courses, ships, airports, subway stations, panoramic view, highway toll booths, exhibition halls, the lighting of building construction, gas stations, overpasses, outdoor billboards and other lighting places

Model No.LX-TG367-150W Cree XML-2

Equivalent: 350-400W high-pressure sodium lamp

LED light source 30 pieces original Cree XML-2 LED

LED luminous efficiency: >120-130lm/W Cree XML-2

Lamp total power: 150 ±2W

Power efficiency: >92%

LED luminous flux: >16,380lm

Lamp rated luminous flux: >15,000lm

Lamp rated luminous efficiency: >100lm/W

Color rendering index: >75Ra

Color temperature:

Cool white: 6,000-7,000K
Pure white: 4,500-5,500K
Warm white: 2,700-3,500K

Beam angle: 25/45/60/90/100°

Light distribution curve (beam pattern)

Asymmetric (bat wing)/rectangular beam

Input voltage: 90-305V AC/Meanwell driver (HLG-150H-48A)

Frequency range: 47-63Hz

Power factor: >0.95

Total harmonic distortion: <15%

Storage temperature: -40-80℃

Working environment temperature and humidity: -40-50℃, 10-95% RH

Junction temperature: 60℃ ±10% (TA =25℃)

Light body and lampshade material

Aluminum alloy

Working lifetime: > 50,000 hours

IP rating: IP65

Net weight: 8.9kg

Gross weight: 10.9kg

Package size: 48 x 48 x 52cm (1 piece)

Cool white: 6,000-7,000K

Pure white: 4,500-5,500K

Warm white: 2,700-3,500K

Apply to the vessel/ship big or small port, gymnasium, lighting engineering, square, golf courses, ships, airports, subway stations, panoramic view, highway toll booths, exhibition halls, the lighting of building construction, gas stations, overpasses, outdoor billboards and other lighting places
