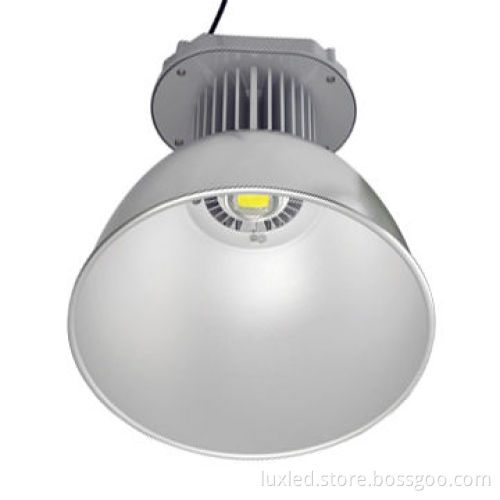

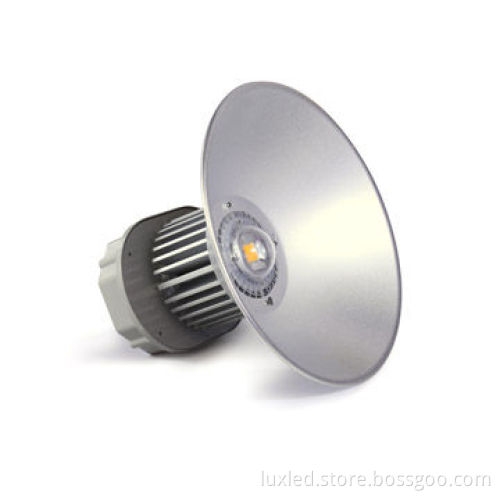

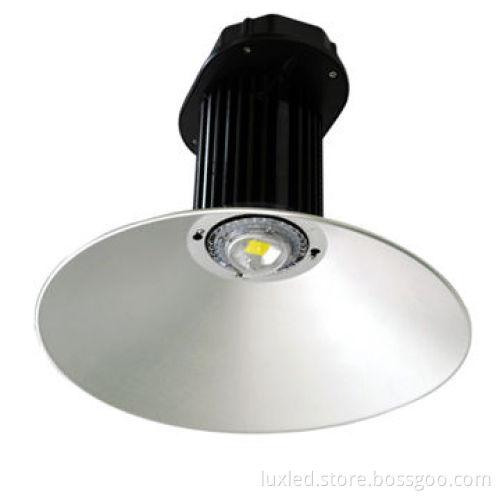

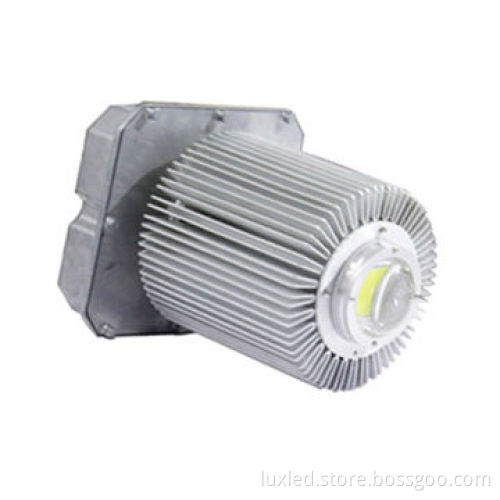

150W LED high bay light, 5-year warranty, AC 85-265V, stable quality

150W LED high bay light, 5-year warranty, AC 85-265V, stable quality

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Specifications:

Model: LX-GK500-150W
Certifications: CE and RoHS
Input voltages: AC 90-305V
Input frequencies: 50/60Hz
System power consumption: 165W
Power factor: >0.9
LED brand Epistar/Bridgelux
LED power supply meanwell
LED power consumption: 150W
Luminous flux: 13,200/14,000lm
lamp luminous efficiency: 80 lm/W/85lm/w
Color temperature: 3,000-7,500K, optional
Color rendering index: RA>70
LED angles: 45/90/120° (picture show is 120°)
Shape: Round
Material: Extruded aluminum heat sinker
Cover color: aluminum silver
Heat sinker dimension:
- H: 250mm
- D: 180mm
IP rating IP54/IP65 upon request
Net weight: 9.6kg
Working temperatures: -20 to 50°C
Lifespan: >50,000 hours
Warranty: 3 years
Package: piece in one carton
GW: 8.8kg
Product body package size: 30*30*35cm (1pc)
Lamp shade package size: 48*48*48cm (20pcs)

Applications:

When open the package, please check whether the inside is including product, accessory, label, certificate quality. And please assure that the light is perfect without any damage
The wires of LED high bay light is three-core, the standard size of the wire is 3*1mm² or 3*1.5mm² and the outer diameter is Φ7~12mm, brown wire is live line, blue wire is null line, yellow & green is ground line
LED high bay light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can’t be repaired
When the electrical continuity is connected, the lead wire should be in electric insulating

Model: LX-GK500-150W

Certifications: CE and RoHS

Input voltages: AC 90-305V

Input frequencies: 50/60Hz

System power consumption: 165W

Power factor: >0.9

LED brand Epistar/Bridgelux

LED power supply meanwell

LED power consumption: 150W

Luminous flux: 13,200/14,000lm

lamp luminous efficiency: 80 lm/W/85lm/w

Color temperature: 3,000-7,500K, optional

Color rendering index: RA>70

LED angles: 45/90/120° (picture show is 120°)

Shape: Round

Material: Extruded aluminum heat sinker

Cover color: aluminum silver

Heat sinker dimension:

H: 250mm
D: 180mm

IP rating IP54/IP65 upon request

Net weight: 9.6kg

Working temperatures: -20 to 50°C

Lifespan: >50,000 hours

Warranty: 3 years

Package: piece in one carton

GW: 8.8kg

Product body package size: 30*30*35cm (1pc)

Lamp shade package size: 48*48*48cm (20pcs)

H: 250mm

D: 180mm

When open the package, please check whether the inside is including product, accessory, label, certificate quality. And please assure that the light is perfect without any damage

The wires of LED high bay light is three-core, the standard size of the wire is 3*1mm² or 3*1.5mm² and the outer diameter is Φ7~12mm, brown wire is live line, blue wire is null line, yellow & green is ground line

LED high bay light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can’t be repaired

When the electrical continuity is connected, the lead wire should be in electric insulating
