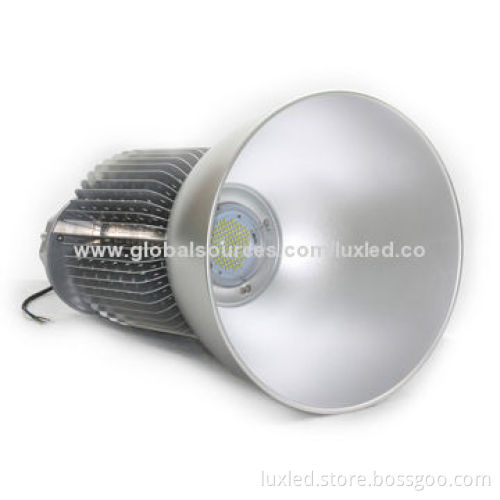

200W LED High Bay Light High-lumen, Meanwell Driver with Cree and Bridgelux Chip

200W LED High Bay Light High-lumen, Meanwell Driver with Cree and Bridgelux Chip

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Specifications:

Power: 200W
Size: 273*250*250mm
Input voltage: 85-265V AC
Light source: Bridgelux or Cree XTE
Color: warm white/pure white/cold white
CCTs:
- WW: 3,000-3,500K
- PW: 4,000-4,500K
- CW: 6,000-6,500K
- Lumen: >18,600lm
CRI: 82/70/70Ra
Beam angles: 45, 60, 90, 100 and 120°
Net weight (whole lamp): 11.30kg
Packing (lamp body only):
- Net weight: 10.7kg
- Net weight: 11.9kg
Carton size: 350*280*495mm (1 piece)

Applications:

LED high bay light is available for factory, storage rooms, public places, lobby, highway toll station, exhibition building, domestic block, gymnasium, gas stations, show rooms, shops, super markets, cool storage, meeting rooms and other lighting places

Installation construction:

When open the package, please check whether the inside is including product, accessory, label, certificate quality
And please assure that the light is perfect without any damage
The wires of led high bay light is three-core, the standard size of the wire is 3 x 1 or 3 x 1.5mm² and the outer diameter is Φ7-12mm, brown wire is live line, blue wire is null line, yellow and green is ground line
LED high bay light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can’t be repaired
When the electrical continuity is connected, the lead wire should be in electric insulating

Power: 200W

Size: 273*250*250mm

Input voltage: 85-265V AC

Light source: Bridgelux or Cree XTE

Color: warm white/pure white/cold white

CCTs:

WW: 3,000-3,500K
PW: 4,000-4,500K
CW: 6,000-6,500K
Lumen: >18,600lm

CRI: 82/70/70Ra

Beam angles: 45, 60, 90, 100 and 120°

Net weight (whole lamp): 11.30kg

Packing (lamp body only):

Net weight: 10.7kg
Net weight: 11.9kg

Carton size: 350*280*495mm (1 piece)

WW: 3,000-3,500K

PW: 4,000-4,500K

CW: 6,000-6,500K

Lumen: >18,600lm

Net weight: 10.7kg

Net weight: 11.9kg

LED high bay light is available for factory, storage rooms, public places, lobby, highway toll station, exhibition building, domestic block, gymnasium, gas stations, show rooms, shops, super markets, cool storage, meeting rooms and other lighting places

When open the package, please check whether the inside is including product, accessory, label, certificate quality

And please assure that the light is perfect without any damage

The wires of led high bay light is three-core, the standard size of the wire is 3 x 1 or 3 x 1.5mm² and the outer diameter is Φ7-12mm, brown wire is live line, blue wire is null line, yellow and green is ground line

LED high bay light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can’t be repaired

When the electrical continuity is connected, the lead wire should be in electric insulating
