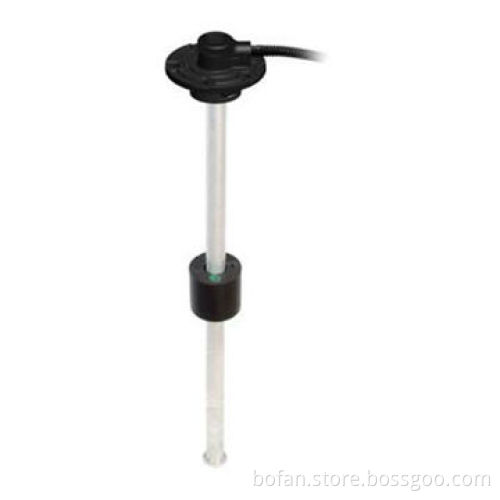

GPS Fuel Level Sensor, 5.5mm Version for GPS Fuel Monitor Fleet Management, Anti-fuel TheftNew

GPS Fuel Level Sensor, 5.5mm Version for GPS Fuel Monitor Fleet Management, Anti-fuel TheftNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Descriptions:

Lightweight
Economical solution
Damping cover included
Integrated damping covers to improve the accuracy of the sensor in a violent vibrating environment
Reed switch technology, product is robust and durable
Resolution range: 10 to 40mm
Precision fuel level measurement
AVL/FMS/tank monitoring system/vehicle tracking system
Part of telemetric system

Specifications:

Best solution for cost sensitive customers and construction vehicles
Length range: 150 to 1,200mm for standard (can be customized)
Voltages: 10 to 32V
Rated current for alarm switch: 500mA
Output signals:
- Resistance range: 0 to 190Ω
- Current range: 0 to 20 or 4 to 20mA
Voltage range: 0.5 to 4.5 or 0 to 5V (can be customized)
Materials: industry grade plastic PA66 + GF30
Assembly: SAE standard 5 holes, other mounting
Accessories: 5 x M5 screws and 2mm thick NBR gasket
If installing on a gas tank, we recommend the optional 2mm thickness FPM gasket
Operating temperatures: -40 to 85°C
Protection rank: IP65
Options: high/low-alarm, damping cover

Applications:

Mainly used on trucks, generators/gen sets, fuel disbursements, vehicles and buses for fuel level detection
Fuel monitoring and fuel theft control
Online GPS/GSM/GPRS vehicle monitoring and fleet management
Multifunction fuel and GPS monitoring
Fuel tanker trucks monitoring (road tanker monitoring)
Fuel storage tanks remote monitoring (tank level monitoring)
Generator tanks remote monitoring

Lightweight

Economical solution

Damping cover included

Integrated damping covers to improve the accuracy of the sensor in a violent vibrating environment

Reed switch technology, product is robust and durable

Resolution range: 10 to 40mm

Precision fuel level measurement

AVL/FMS/tank monitoring system/vehicle tracking system

Part of telemetric system

Best solution for cost sensitive customers and construction vehicles

Length range: 150 to 1,200mm for standard (can be customized)

Voltages: 10 to 32V

Rated current for alarm switch: 500mA

Output signals:

Resistance range: 0 to 190Ω
Current range: 0 to 20 or 4 to 20mA

Voltage range: 0.5 to 4.5 or 0 to 5V (can be customized)

Materials: industry grade plastic PA66 + GF30

Assembly: SAE standard 5 holes, other mounting

Accessories: 5 x M5 screws and 2mm thick NBR gasket

If installing on a gas tank, we recommend the optional 2mm thickness FPM gasket

Operating temperatures: -40 to 85°C

Protection rank: IP65

Options: high/low-alarm, damping cover

Resistance range: 0 to 190Ω

Current range: 0 to 20 or 4 to 20mA

Mainly used on trucks, generators/gen sets, fuel disbursements, vehicles and buses for fuel level detection

Fuel monitoring and fuel theft control

Online GPS/GSM/GPRS vehicle monitoring and fleet management

Multifunction fuel and GPS monitoring

Fuel tanker trucks monitoring (road tanker monitoring)

Fuel storage tanks remote monitoring (tank level monitoring)

Generator tanks remote monitoring
