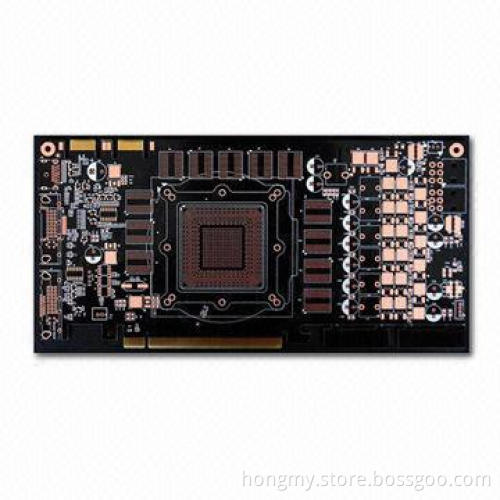

Multilayer Black Rigid PCB with Manufacturer, 1.6mm Board, Made of FR4 Material, White Silkscreen

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal, Western Union

Product Description

Specifications:

Layers count: 8
Board material: FR4
Board thickness: 1.6mm
Finished copper thickness: 1oz
Minimum drilling diameter: 0.3mm
Surface finish: HAL (lead-free)
Materials: FR-4, CEM-1, aluminum, Rogers, ta-conic, Greek andArlin
Finish board thickness: 0.2 to 3.2mm
External copper thickness: 35 to 210um
Internal copper thickness: 17 to 140um
Copper plating hole: 18 to 40um
Trace width and line spacing: 0.075/0.1mm (3/4 mils)
CNC hole diameter: 0.20mm (minimum)
Punching hole diameter: 0.9mm (35 mils) (minimum)
Panel size: 610 x 508mm (maximum)
Hole position tolerance: 0.075mm
Hole dimension tolerance:
- RTH: 0.075mm
- NPTH: 0.05mm
Outline tolerance:
- CNS: 0.125mm
- Punching: 0.15mm
Warp and twist: 0.70%
Solder mask bridge: 0.0635mm (minimum)
Distance between lines to board bridge:
- Outline: 0.25mm (minimum)
- V-cut: 0.40mm
Impedance control tolerance: ±10%
Test voltage: 10 to 300V
Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more
Surface finished: HASL, immersion gold, immersion silver,gold-plated, gold finger and OSP
