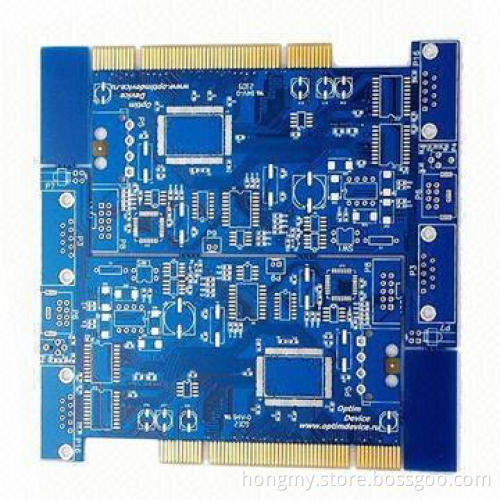

Multilayer PCB with Blue Solder Mask and HAL and Gold Finger

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C and Western Union

Product Description

Layers: 4

Board materials: FR4

Board thickness: 1.6mm

Surface finish: HASL-LF + gold finger

Solder mask: blue

Minimum line width/gap: 0.1mm (minimum)

Aperture: 0.3mm (minimum)

Hongmy production capable

Materials: FR-4, CEM-1, aluminum, rogers, Taconic, Gerek andArlin

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

CNC hole diameter: 0.20mm (minimum)

Punching hole diameter: 0.9mm (35 mils) (minimum)

Panel size: 610 x 508mm (maximum)

Hole position tolerance: 0.075mm

Hole dimensions tolerance:

Outline tolerance:

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (minimum)

Distance between lines to board bridge:

Impedance control tolerance: ± 10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finished: HASL, immersion gold, immersion silver,gold-plated, gold finger and OSP

PTH: 0.075mm

NPTH: 0.05mm

CNS: 0.125mm

Punching: 0.15mm

Outline: 0.25mm (minimum)

V-cut: 0.40mm
