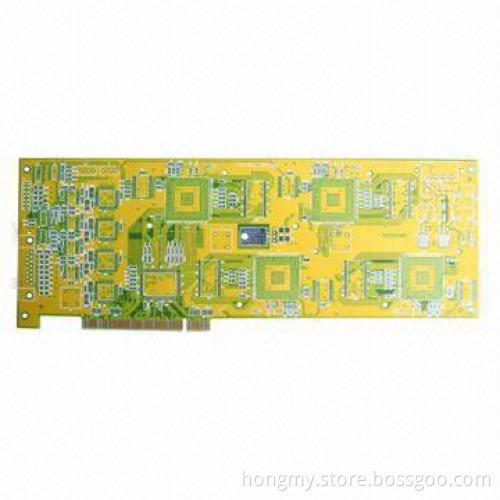

6-layer PCB with Gold Finger and Yellow Solder Mask

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Paypal or Western Union

Product Description

Specifications:

Minimum hole diameter: 0.2mm

Minimum line width: 0.1mm

Minimum line spacing: 0.1mm

Surface finish: immersion gold

Solder mask: yellow

With ISO 9001, UL and RoHS marks

RoHS: A001C100827049001-2

SGS: CANEC1000312001

UL: E320045

Our capability:

Material: FR-4/Hi Tg FR-4/lead-free materials (RoHScompliant)/CEM-3, aluminum, metal based
Layers number: 1 to 16
Finished board thicknesses: 0.2 to 3.8mm (8 to 150mil)
Board thickness tolerance: ±10%
Cooper thicknesses: 0.5 to 6oz (18 to 210um)
Copper plating hole: 18 to 40um
Impedance control: ±10%
Warp and twist: 0.70%
Peelable: 0.012 (0.3mm) to 0.02-inch (0.5mm)

Images:

Minimum trace width: 0.1mm (4mil)

Minimum space width: 0.1mm (4mil)

Minimum annular ring: 0.1mm (4mil)

SMD pitch: 0.2mm (8mil)

BGA pitch: 0.2mm (8mil)

Material: FR-4/Hi Tg FR-4/lead-free materials (RoHScompliant)/CEM-3, aluminum, metal based

Layers number: 1 to 16

Finished board thicknesses: 0.2 to 3.8mm (8 to 150mil)

Board thickness tolerance: ±10%

Cooper thicknesses: 0.5 to 6oz (18 to 210um)

Copper plating hole: 18 to 40um
