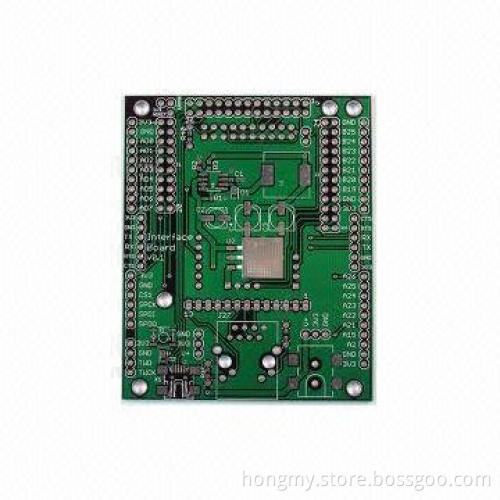

Multilayer Blank PCB with Immersion Gold Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union or PayPal

Product Description

6-layer with immersion gold finish

Base material: FR-4 based with TG170

Board thickness: 1.6mm

Copper thickness: 2/2oz

Minimum line width: 8mil

Minimum line spacing: 10mil

Soldermask color: green

Low price and good quality

With ISO9001, UL, RoHS, SGS marks

We can do:

Applications: inverter, medical devices, CCTV, power supply,GPS, UPS, set-top box, telecommunication, LED and more

Manufacture capability:

1 to 16-layer FR-4 PCB board

1 to 2 layer aluminum PCB

1 to 6oz copper thickness

0.2mm hole size

0.1mm line width/space

Number of layer: 1 to 16

Materials: FR-4, Taconic, Rogers, metal-backed laminate

Finish board thicknesses: 0.2 to 3.2mm (8 to 126mil)

Minimum core thickness: 0.075mm (3mil)

Copper thickness: minimum of 1/2oz, maximum of 6oz

Minimum width and line spacing: 0.075/0.1mm (3/4mil)

Minimum hole diameter for CNC drilling: 0.2mm

Maximum fabrication area: 610 x 508mm

Conductor width: ± 0.05mm (2mil), ±20% oforiginal artwork

Hole diameter:

Outline tolerance: ±0.125mm (5mil) CNC routing,±0.15mm (6mil) by punching

Warp and twist: 0.70%

PTH L: ±0.075mm (3mil)

Non-PTH L: ±0.05mm (2mil)
