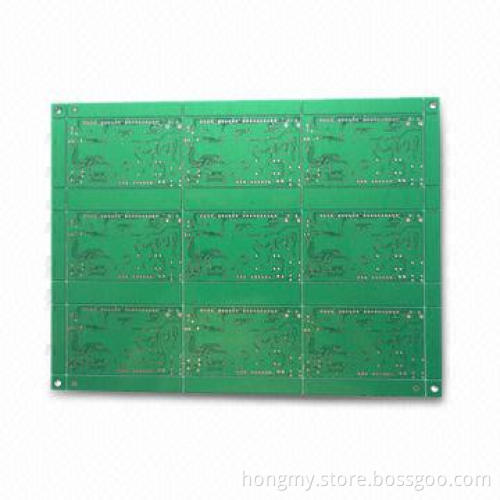

Multilayer PCB with Immersion Gold Surface Finish, 2oz Outer Layer and FR4 Base Material

Get Latest Price

Payment Type:: T/T, Western Union, LC, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, LC, PayPal

Product Description

Number of layers: six

Base material: FR4

Finished board thickness: 1.6 mm

Copper thickness:

Outer layer: 2oz
Inner layer: 1oz
Minimum hole size: 0.2mm
Minimum line width: 0.2mm
Minimum line spacing: 0.1mm

Surface finishing: immersion gold

Layers: 1 to 16

Material: FR-4, aluminum base, Rogers and Taconic

Finish board thickness: 0.2 to 3.2mm (8 to 126mil)

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Minimum trace width and line spacing: 0.075/0.1mm (3/4mil)

Minimum hole dimension (CNC): 0.20mm (8mil)

Minimum hole dimension (punching): 0.9mm (35mil)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance (CNC): ±0.075mm

Hole dimensions tolerance (CNC):

PTH: ±0.075mm
NPTH: ±0.05mm

Outline tolerance:

CNC: ±0.125mm
Punching: ±0.15mm

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Distance between line to board edge

Outline: 0.25mm

V-CUT: 0.40mm

Impedance control tolerance: ±10%

Test voltages: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattgreen/black and more

Surface finishes: HASL, immersion silver/gold, plate gold andgold finger

Outer layer: 2oz

Inner layer: 1oz

Minimum hole size: 0.2mm

Minimum line width: 0.2mm

Minimum line spacing: 0.1mm

PTH: ±0.075mm

NPTH: ±0.05mm

CNC: ±0.125mm

Punching: ±0.15mm
