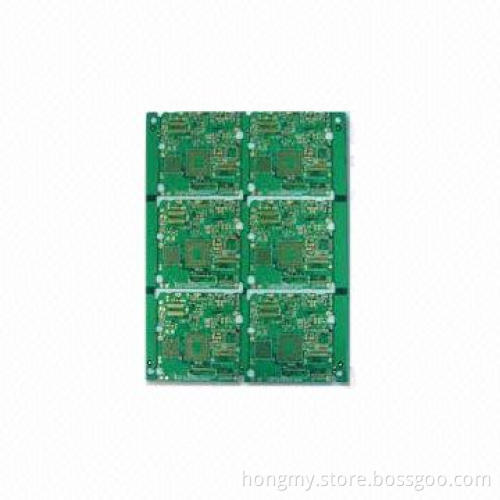

4-layer PCB with 1.6mm Board Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, LC or PayPal

Product Description

4-layer with HASL

Base material: FR-4 based

Board thickness: 1.6mm

Copper thickness: 1/1oz

Minimum line width: 8 mils

Minimum line spacing: 10 mils

Solder mask color: green

UL, RoHS, SGS compliant

Manufacture capability

Number of layers: 1 to 16 layers

Materials: FR-4, Taconic, Rogers, metal-backed laminate

Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)

Minimum core thickness: 0.075mm (3 mils)

Copper thickness: 1/2oz

Width and line spacing: 0.075/0.1mm (3/4 mils)

Hole diameter for CNC drilling: 0.2mm

Fabrication area: 610 x 508mm

Conductor width: ±0.05mm (2 mils)

±20% of original artwork

Hole diameter:

Outline tolerance: ±0.125mm (5 mils) CNC routing

±0.15mm (6 mils)by punching

Warp and twist: 0.70%

PTH L: ±0.075mm (3 mils)

Non-PTH L: ±0.05mm (2 mils)
