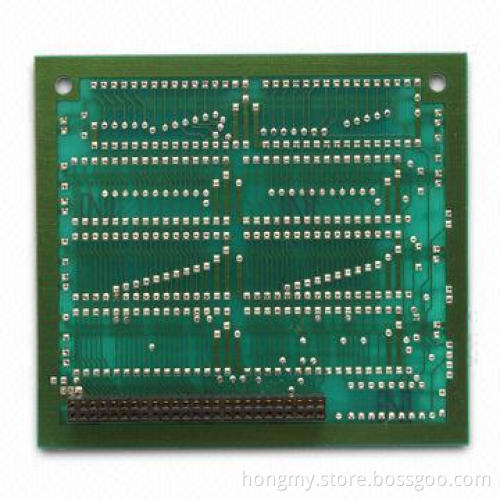

6-layered PCB with Lead-free HASL Surface Finish and 1.6mm Board Thickness

Get Latest Price

Payment Type:: TT, Western Union, PayPal, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, PayPal, L/C

Product Description

Number of layers: 6

Base material: FR-4

Finished board thickness: 1.6mm

Copper thickness:

Outer layer: 3oz
Inner layer: 0.5oz

Hole size: 0.2mm (minimum)

Line width: 0.1mm (minimum)

Line spacing: 0.1mm (minimum)

Surface finishing: lead free HASL

Manufacture capability

Item manufacture capability

Layers: 1 to 16 layers

Material: FR-4, aluminum base, Rogers, Taconic

Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3 mils/4 mils)

Hole dimension: 0.20mm (8 mils)

Hole dimension (Punching): 0.9mm (35 mils)

Panel dimension: 610 x 508mm (maximum)

Hole position tolerance: ±0.075mm

Hole dimension tolerance:

PTH: ±0.075mm
NPTH: ±0.05mm

Outline tolerance:

CNC: ±0.125mm
Punching: ±0.15mm

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (maximum)

Distance between line to board edge:

Outline: 0.25mm
V-cut: 0.40mm

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matte green, matte black and more

Surface finishing: HASL, immersion silver/gold, plate gold, gold finger

Outer layer: 3oz

Inner layer: 0.5oz

PTH: ±0.075mm

NPTH: ±0.05mm

CNC: ±0.125mm

Punching: ±0.15mm

Outline: 0.25mm

V-cut: 0.40mm
