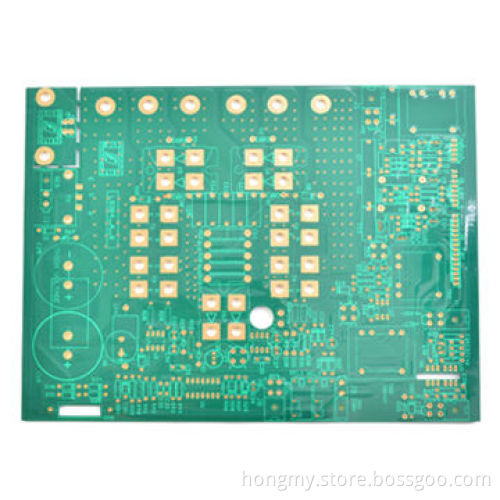

6oz Copper PCB Board with Immersion Gold Surface Finish, Ideal for Power Supplier Products

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, L/C at Sight and Western Union

Product Description

Specifications:

Layers: 2
Board materials: FR4, Tg150
Board thickness: 0.062-inch
Surface finish: immersion gold
Copper thickness: 6 oz on both layer
Solder mask: green
Trace width/gap: 0.5mm (minimum)
Aperture: 0.3mm (minimum)
Peel strength: 1.25
Solder blister resistance: ≥60 (288°C)
Flammability: UL94 V0
Outline tolerance: (CNC) 0.125 and (punching) 0.15mm
Warp and twist: 0.70%
Solder mask bridge: 0.0635mm (minimum)
Distance between line to board bridge: (outline) 0.25 and(v-cut) 0.40mm (minimum)
Impedance control tolerance: ±10%
Test voltage: 10 to 300V
