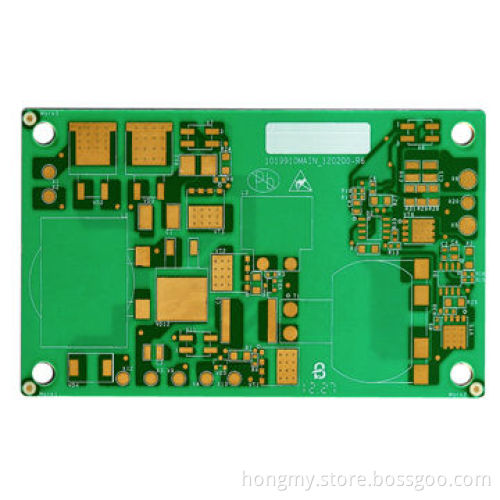

Double-sided PCB with Heavy Copper and Immersion Gold Finish, 2.0mm Thickness
  • Double-sided PCB with Heavy Copper and Immersion Gold Finish, 2.0mm Thickness
Double-sided PCB with Heavy Copper and Immersion Gold Finish, 2.0mm Thickness

Double-sided PCB with Heavy Copper and Immersion Gold Finish, 2.0mm Thickness

Get Latest Price
Payment Type:
TT, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • Base material: FR-4
    • Finishing board thickness: 1.6mm
    • Copper thickness: 2oz
    • Whole diameter: 0.3mm (minimum)
    • Line width: 0.3mm (minimum)
    • Line spacing: 0.2mm (minimum)
    • Surface finishing: lead-free HASL
    • Solder mask color: green
  • Optional:
    • Number of layer: 1 to 16 layers
    • Material: FR-4, Taconic, Rogers, metal-backed laminate
    • Finishing board thickness: 0.2 to 3.2mm (8 to 126-mil)
    • Minimum core thickness: 0.075mm (3-mil)
    • Copper thickness: 1/2oz minimum, 6oz (maximum)
    • Minimum width and line spacing: 0.075/0.1mm (3/4-mil)
    • Minimum hole diameter for CNC drilling: 0.2mm
    • Maximum fabrication area: 610 x 508mm
    • Conductor width: ±0.05mm (2-mil) ±20% of originalartwork
    • Hole diameter:
      • PTH L: ±0.075mm (3-mil)
      • Non-PTH L: ±0.05mm (2-mil)
    • Outline tolerance:
      • ±0.125mm (5-mil) CNC routing
      • ±0.15mm (6-mil) by punching
    • Warp and twist: 0.70%
    • Insulation resistance: 10K© to 20M©
    • Conductivity: d50©
    • Test voltage: 10 to 300V
  • Base material: FR-4
  • Finishing board thickness: 1.6mm
  • Copper thickness: 2oz
  • Whole diameter: 0.3mm (minimum)
  • Line width: 0.3mm (minimum)
  • Line spacing: 0.2mm (minimum)
  • Surface finishing: lead-free HASL
  • Solder mask color: green
  • Number of layer: 1 to 16 layers
  • Material: FR-4, Taconic, Rogers, metal-backed laminate
  • Finishing board thickness: 0.2 to 3.2mm (8 to 126-mil)
  • Minimum core thickness: 0.075mm (3-mil)
  • Copper thickness: 1/2oz minimum, 6oz (maximum)
  • Minimum width and line spacing: 0.075/0.1mm (3/4-mil)
  • Minimum hole diameter for CNC drilling: 0.2mm
  • Maximum fabrication area: 610 x 508mm
  • Conductor width: ±0.05mm (2-mil) ±20% of originalartwork
  • Hole diameter:
    • PTH L: ±0.075mm (3-mil)
    • Non-PTH L: ±0.05mm (2-mil)
  • Outline tolerance:
    • ±0.125mm (5-mil) CNC routing
    • ±0.15mm (6-mil) by punching
  • Warp and twist: 0.70%
  • Insulation resistance: 10K© to 20M©
  • Conductivity: d50©
  • Test voltage: 10 to 300V
  • PTH L: ±0.075mm (3-mil)
  • Non-PTH L: ±0.05mm (2-mil)
  • ±0.125mm (5-mil) CNC routing
  • ±0.15mm (6-mil) by punching
