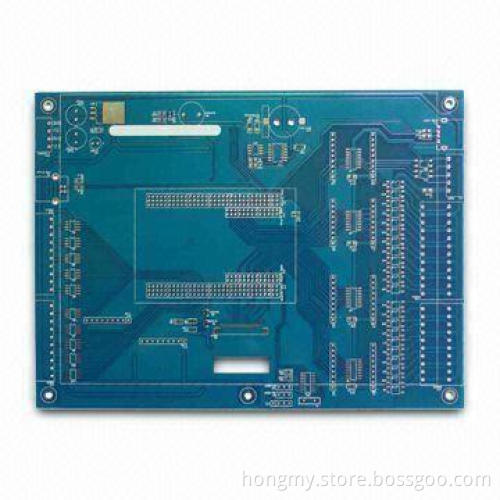

FR4 Double-sided PCB with Lead-free HASL Surface Finish and 1.6mm Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Layers: two

Board material: FR-4

Board thickness: 1.6mm

Finished copper thickness: 1oz

Surface finish: lead free HASL

Solder mask: blue

Hongmy PCB capability

Layers: 1 to 16

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance:

Outline tolerance:

Warp and twist: 0.70%

Minimum solders mask bridge: 0.0635mm

Minimum distance between lines to board bridge:

Impedance control tolerance: ± 10%

Test voltages: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black, and more

Surface finishing: HASL, immersion gold, immersion silver,plated gold, gold finger, and OSP

If you send us your Gerber Files and PCB specifications, wewill quote for you within 12 hours

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm

Outline: 0.25mm

V-cut: 0.40mm
