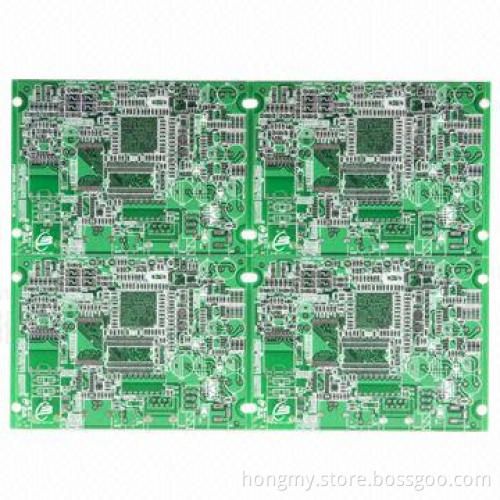

FR4 Double-sided PCB with HASL Lead Free Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Paypal , Western Union

Product Description

Layers: 1 to 16 layers

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimension: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance: 0.075mm (PTH), 0.05mm (NPTH)

Outline tolerance: 0.125mm (CNC), 0.15mm (punching)

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Minimum distance between lines to board bridge: 0.25mm(outline), 0.40mm (V-cut)

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finishing: HASL, immersion gold, immersion silver, goldplated, gold finger, OSP
