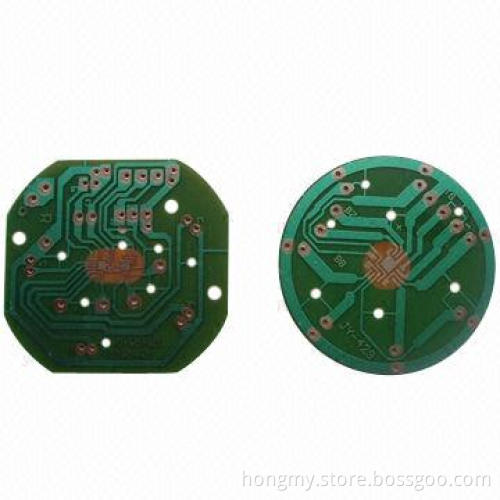

Circuit Board with 2-layer, Copper Thickness of 17 to 140mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Paypal or Western Union

Product Description

Layers: 1 to 16

Materials: FR-4, CEM-1, aluminum, rogers, taconic, getek andarlon

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210mm

Internal copper thickness: 17 to 140mm

Copper plating hole: 18 to 40mm

Trace width and line spacing: 0.075 or 0.1mm (3/4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance: (PTH) 0.075mm and (NPTH) 0.05mm

Outline tolerance: (CNC) 0.125 and (punching) 0.15mm

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Minimum distance between line to board bridge:

Outline: 0.25mm

V-cut: 0.40mm

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matte greenand matte black

Surface finish: HASL, RoHS, immersion gold, immersion silver,plated gold, gold finger and OSP
