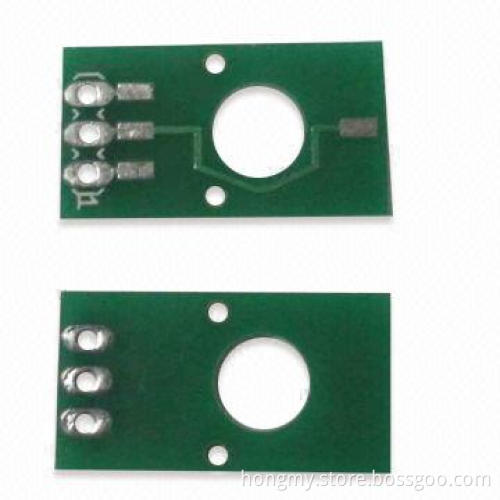

PCBs with 1.6mm Thickness, Finish Board Thickness of 0.2 to 3.2mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, L/C at Sight or Western Union

Product Description

With 1.6mm thickness

Capability:

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finishes: HASL, immersion gold, immersion silver,gold-plated, gold finger and OSP

Layers: 1 to 16

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210µm

Internal copper thickness: 17 to 140µm

Copper plating hole: 18 to 40µm

Trace width and line spacing: 0.075/0.1mm (3 to 4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimension: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance:

Outline tolerance:

Warp and twist: 0.70%

Lead free

Surface finishing: HASL

Minimum solder mask bridge: 0.0635mm

Minimum distance between line to board bridge: (outline) 0.25and (v-cut) 0.40mm

Impedance control tolerance: ± 10%

Test voltage: 10 to 300V

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm
