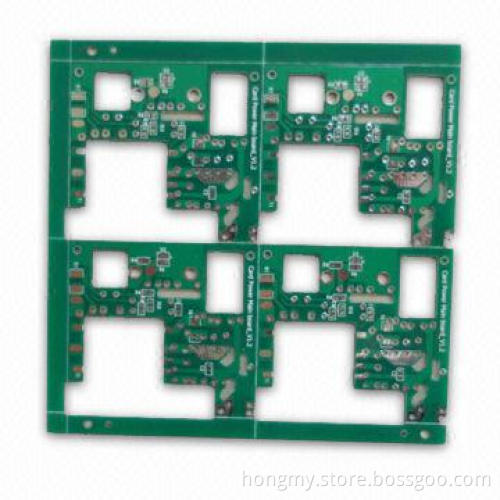

Double-sided PCB, 2.0mm Board Thickness and Voltages of 10 to 300V
  • Double-sided PCB, 2.0mm Board Thickness and Voltages of 10 to 300V
Double-sided PCB, 2.0mm Board Thickness and Voltages of 10 to 300V

Double-sided PCB, 2.0mm Board Thickness and Voltages of 10 to 300V

Get Latest Price
Payment Type:
T/T, PayPal, L/C or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, L/C or Western Union
Product Description
Product Description
  • Features:
    • Materials: FR-4, CEM-1, aluminum and more
    • Finish board thicknesses: 0.2 to 3.2mm
    • External copper thicknesses: 35 to 210um
    • Internal copper thicknesses: 17 to 140um
    • Copper plating holes: 18 to 40um
    • Trace width and line spacings: 0.075/0.1mm (3/4 mils)
    • Minimum CNC hole diameter: 0.20mm
    • Minimum punching hole diameter: 0.9mm (35 mils)
    • Maximum panel dimensions: 610 x 508mm
    • Hole position tolerance: 0.075mm
    • Hole dimension tolerances:
      • PTH: 0.075mm
      • NPTH: 0.05mm
    • Outline tolerances:
      • CNC: 0.125mm
      • Punching: 0.15mm
    • Warp and twist: 0.70%
    • Minimum distance between line to board bridges:
      • Outline: 0.25mm
      • V-cut: 0.40mm
    • Impedance control tolerance: ± 10%
    • Voltages: 10 to 300V
    • OSP surface finish
    • Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more
  • Applications: CCTVs, DVD players, mobile phones, LCD molds,stereos, Bluetooth, computers and more
  • Materials: FR-4, CEM-1, aluminum and more
  • Finish board thicknesses: 0.2 to 3.2mm
  • External copper thicknesses: 35 to 210um
  • Internal copper thicknesses: 17 to 140um
  • Copper plating holes: 18 to 40um
  • Trace width and line spacings: 0.075/0.1mm (3/4 mils)
  • Minimum CNC hole diameter: 0.20mm
  • Minimum punching hole diameter: 0.9mm (35 mils)
  • Maximum panel dimensions: 610 x 508mm
  • Hole position tolerance: 0.075mm
  • Hole dimension tolerances:
    • PTH: 0.075mm
    • NPTH: 0.05mm
  • Outline tolerances:
    • CNC: 0.125mm
    • Punching: 0.15mm
  • Warp and twist: 0.70%
  • Minimum distance between line to board bridges:
    • Outline: 0.25mm
    • V-cut: 0.40mm
  • Impedance control tolerance: ± 10%
  • Voltages: 10 to 300V
  • OSP surface finish
  • Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more
