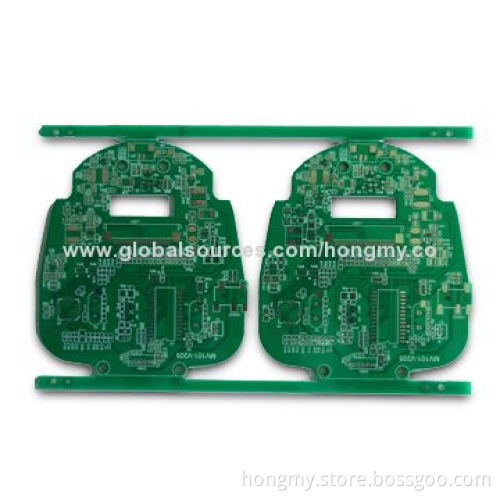

Double-sided PCB with Maximum Sized 610 x 508mm and 10 to 300V Test Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal, Western Union

Product Description

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Greek and Arlon

Finishing board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

CNC hole diameter: 0.20mm (minimum)

Punching hole diameter: 0.9mm (35 mils) (minimum)

Panel size: 610 x 508mm (maximum)

Hole position tolerance: 0.075mm

Hole dimensions tolerance:

Outline tolerance:

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (minimum)

Distance between lines to board bridge: 0.25 (minimum) (outline) and 0.40mm (v-cut)

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matte green, matte black and more

Surface finishing: HASL, immersion gold, immersion silver, gold-plated, gold finger and OSP

PTH: 0.075mm

NPTH: 0.05mm

CNS: 0.125mm

Punching: 0.15mm
