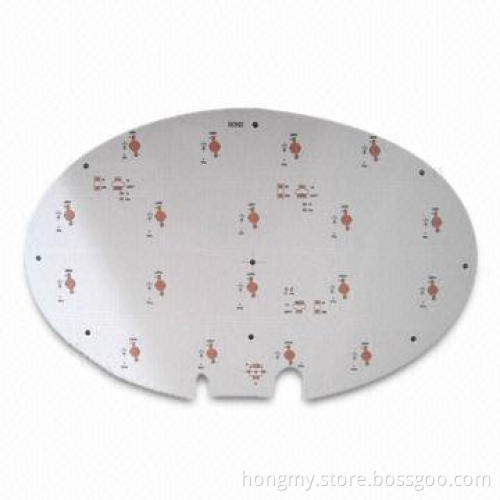

Single-layer LED MCPCB with 1oz Copper

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal, Western Union

Product Description

Layer: single

Board material: aluminum 5052

Board thickness: 1.2mm

Finished copper thickness: 1oz

Minimum drilling diameter: 0.5mm

Surface finish: HAL (lead-free)

Aluminum PCB manufacture capability

Product type: aluminum/copper/iron base board

Surface: finishing HASL/immersion tin/goldplating/OSP/immersion silver

Layers: 1 to 4 layers

Maximum size: 1,100 x 480mm

Minimum size: 5 x 5mm

Minimum trace and line spacing: 0.1mm

Warp/twist: <0.5mm (thickness: 1.6mm, size: 300 x300mm)

Finished product thickness: 0.2 to 4.5mm

Copper thickness: 18, 35, 70, 105 and 140um

Hole inner copper thickness: 18 to 40um

Hole position tolerance: ± 0.075mm

Minimum punching hole diameter board thickness:<1.0:1.0mm

Board thickness: 1.2 to 3.0:1.5 mm

Minim punching square slot specification board thickness:<1.0:0.8 x 0.8mm

Board thickness: 1.2 to 3.0:1.0 x 1.0mm

Silk prints circuit tolerance: ± 0.075mm

Outline tolerance CNC: ±0.1mm

Mold: ± 0.75mm

Minimum hole size: 0.8mm

No limitation in maximum hole dimensions

V-CUT angle deviation: ±0.5°

V-CUT board thickness range: 0.6 to 3.2mm

Minimum component mark character style: 0.15mm

Minimum open window for PADs: 0.01mm

Solder mask green, white, blue, matte black and gray
