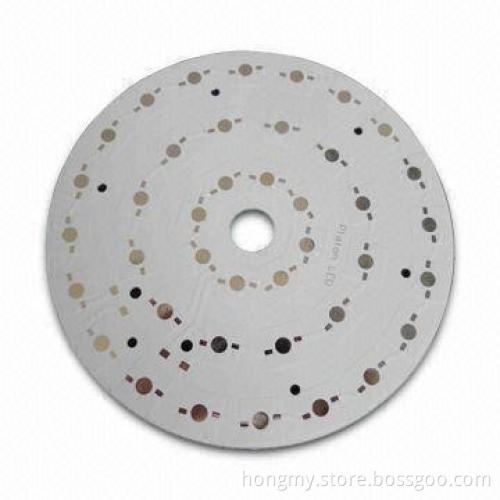

LED Aluminum PCB with Round Shape, White Solder Mask Black Silkscreen

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, L/C and Western Union

Product Description

Hongmy manufacture capability

Layers: 1 to 16

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon

Finished board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance:

Outline tolerance:

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Minimum distance between line to board bridge: outline: 0.25mm,V-cut: 0.40mm

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matt green,matt black and more

Surface finishes: HASL, immersion gold, immersion silver,gold-plated, gold finger, OSP

If you send us your Gerber files and PCB specifications, wewill quote for you within 12 hours

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm
