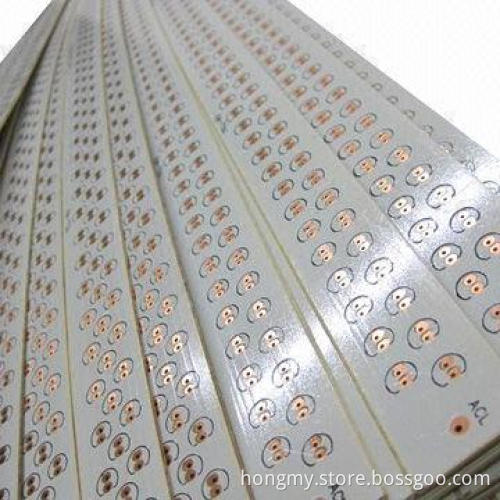

LED Light PCB with High Thermal Conductivity and 1oz Copper

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, L/C or Western Union

Product Description

Factory capability:

Hole dimension tolerance:

Outline tolerance:

Warp and twist: 0.70%

Minimum distance between line to board bridge:

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black, and more

Surface finishing: HASL, immersion gold, immersion silver,plated gold, gold finger, and OSP

Applications: CCTVs, DVD players, mobile phones, LCD molds,stereo, Bluetooth, computers and more

Layers: 1 to 16

Materials: FR-4, CEM-1, and aluminum

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum CNC whole diameter: 0.20mm

Minimum punching whole diameter: 0.9mm (35 mils)

Maximum panel dimensions: 610 x 508mm

Whole position tolerance: 0.075mm

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm

Outline: 0.25mm

V-cut: 0.40mm
