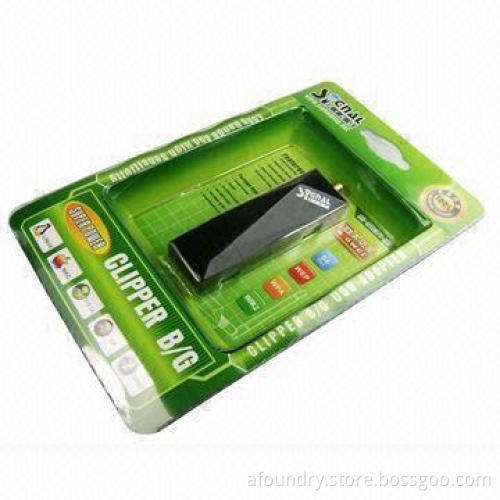

150Mbps High-power WLAN Card, Supports Microsoft's Windows 98 SE/Me/2000/XP/7/Vista/Linux and Mac OS
  • 150Mbps High-power WLAN Card, Supports Microsoft's Windows 98 SE/Me/2000/XP/7/Vista/Linux and Mac OS
  • 150Mbps High-power WLAN Card, Supports Microsoft's Windows 98 SE/Me/2000/XP/7/Vista/Linux and Mac OS
150Mbps High-power WLAN Card, Supports Microsoft's Windows 98 SE/Me/2000/XP/7/Vista/Linux and Mac OS
150Mbps High-power WLAN Card, Supports Microsoft's Windows 98 SE/Me/2000/XP/7/Vista/Linux and Mac OS

150Mbps High-power WLAN Card, Supports Microsoft's Windows 98 SE/Me/2000/XP/7/Vista/Linux and Mac OS

Get Latest Price
Payment Type:
L/C and T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C and T/T
Product Description
Product Description
  • Features:
    • High-powered wireless USB adapter
    • Chipset: Realtek 8187L (1,000mW)
    • Transmission rate: up to 54Mbps covers 1,500 meters with high-gain antenna
    • Supports soft AP function: allows user to create AP function at your computer
    • Replaceable antenna user can change to higher-gain antenna
    • Extend the range of your wireless network
  • Technique parameter:
    • Standards: IEEE802.11g/b
    • Interface: USB1.1/2.0
    • Frequency band: 2,400 to 2,484GHz
    • Radio type:
      • IEEE802.11g: OFDM (64-QAM, 16-QAM, QPSK and BPSK)
      • IEEE802.11b: DSSS (CCK, DQPSK and DBPSK)
    • Data rate:
      • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
      • 802.11b: 11, 5.5, 2 and 1Mbps with auto-rate fall back
    • Access protocol: CSMA/CA
    • Number of operating channel:
      • 2.412 to 2.462GHz (Canada, FCC)/11 channels
      • 2.412 to 2.484GHz (Japan, TELEC)/14 channels
      • 2.412 to 2.472GHz (Euro, ETSI)/13 channels
    • Security: 64/128-bit WEP
      • WPA (TKIP with IEEE802.1x)
      • WPA2 (AES with IEEE802.1x)
    • RF output power (typical):
      • 802.11g: up to 23 ±1dBm
      • 802.11b: up to 29 ±1dBm
    • Sensitivity:
      • -75dbm at 54Mbps
      • -87dbm at 11Mbps
    • Antenna: one detachable 5dbi antenna (SMA connector)
    • Dimensions: 85 x 63 x 22mm (not including antenna)
    • Weight: 38.5g
    • Operating temperature: 0 to 60°C, -20 to 70% (ambient temperature)
    • Humidity: 10 to 90% RH (non-condensing)
    • Driver supports: Microsoft's Windows 98 SE/Me/2000/XP/Vista/Linux/7 and Apple's Mac
  • Packing and accessories:
    • Wireless LAN USB adapter
    • High-gain 12dBi antenna
    • 5ft USB extension cable
    • Driver/manual CD
  • High-powered wireless USB adapter
  • Chipset: Realtek 8187L (1,000mW)
  • Transmission rate: up to 54Mbps covers 1,500 meters with high-gain antenna
  • Supports soft AP function: allows user to create AP function at your computer
  • Replaceable antenna user can change to higher-gain antenna
  • Extend the range of your wireless network
  • Standards: IEEE802.11g/b
  • Interface: USB1.1/2.0
  • Frequency band: 2,400 to 2,484GHz
  • Radio type:
    • IEEE802.11g: OFDM (64-QAM, 16-QAM, QPSK and BPSK)
    • IEEE802.11b: DSSS (CCK, DQPSK and DBPSK)
  • Data rate:
    • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
    • 802.11b: 11, 5.5, 2 and 1Mbps with auto-rate fall back
  • Access protocol: CSMA/CA
  • Number of operating channel:
    • 2.412 to 2.462GHz (Canada, FCC)/11 channels
    • 2.412 to 2.484GHz (Japan, TELEC)/14 channels
    • 2.412 to 2.472GHz (Euro, ETSI)/13 channels
  • Security: 64/128-bit WEP
    • WPA (TKIP with IEEE802.1x)
    • WPA2 (AES with IEEE802.1x)
  • RF output power (typical):
    • 802.11g: up to 23 ±1dBm
    • 802.11b: up to 29 ±1dBm
  • Sensitivity:
    • -75dbm at 54Mbps
    • -87dbm at 11Mbps
  • Antenna: one detachable 5dbi antenna (SMA connector)
  • Dimensions: 85 x 63 x 22mm (not including antenna)
  • Weight: 38.5g
  • Operating temperature: 0 to 60°C, -20 to 70% (ambient temperature)
  • Humidity: 10 to 90% RH (non-condensing)
  • Driver supports: Microsoft's Windows 98 SE/Me/2000/XP/Vista/Linux/7 and Apple's Mac
  • IEEE802.11g: OFDM (64-QAM, 16-QAM, QPSK and BPSK)
  • IEEE802.11b: DSSS (CCK, DQPSK and DBPSK)
  • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
  • 802.11b: 11, 5.5, 2 and 1Mbps with auto-rate fall back
  • 2.412 to 2.462GHz (Canada, FCC)/11 channels
  • 2.412 to 2.484GHz (Japan, TELEC)/14 channels
  • 2.412 to 2.472GHz (Euro, ETSI)/13 channels
  • WPA (TKIP with IEEE802.1x)
  • WPA2 (AES with IEEE802.1x)
  • 802.11g: up to 23 ±1dBm
  • 802.11b: up to 29 ±1dBm
  • -75dbm at 54Mbps
  • -87dbm at 11Mbps
  • Wireless LAN USB adapter
  • High-gain 12dBi antenna
  • 5ft USB extension cable
  • Driver/manual CD
