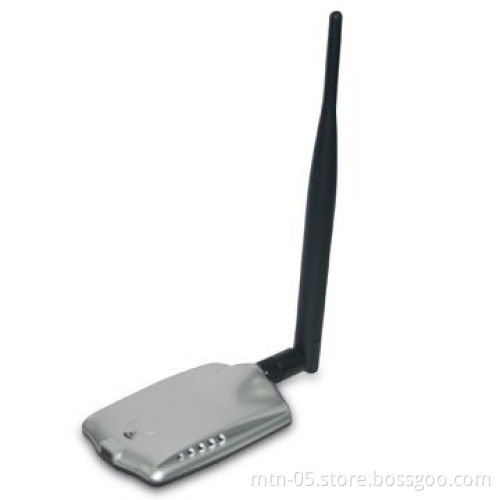

High-power Wireless USB Adapter with 27dBm/500mW Output Power and 2.412 to 2.484GHz Frequency BandNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT in Advance

Product Description

Specifications:

Connects at a full 54Mbps high-speed transfer rate for 802.11g
Detachable antenna with RP-SMA connector, upgradeable to a higher power antenna for a wider wireless coverage
Supports high-output power up to 500mW (27dBm) for extend the coverage range up to 5x than standard USB adapters
Supports operating distance of up to 1,000 meters in free space
Suitable for plug-and-play compatible with all computers
Software AP function, supports PSP, X-link, QOS and WMM
With high-security 64, 128 and 6-bit WEP encryption, TKIP, WPA and 802.11

Description:

Standard: IEEE 802.11b and IEEE 802.11g (Wi-Fi compatible)
Chipset: realtek RTL8187 + RL8225
RTL8187B and 8187L both are available
Frequency band: 2.412 to 2.484GHz, unlicensed ISM band
Data rate:
- IEEE 802.11b: 1, 2, 5.5 and 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54Mbps
Output power: 27dBm/500mW
Transmitter power:
- 11g: 15 ±2dBm at 54Mbps
- 11b: 25 ±2dBm
Operating range: up to 1,000M in open environment
Power consumption:
- Transmit: <600mA
- Receive: <400mA
Security: WEP (64, 128 and 256bit), WPA, WPA-PSK, WPA2, TKIP/AES and WPA2-PSK
I/O interface: USB2.0/1.1
Operating system: Microsoft's Windows 98 Se, Me, 2000, XP, SP2, Vista, Mac and Linux
Operating temperature: -20 to +70°C
Storage temperature: -40 to +80°C
Humidity: 10 to 90% RH (non-condensing)
Channels:
- 2412 to 2462MHz (US) 11 channels
- 2412 to 2472MHz (EU) 13 channels
- 2412 to 2484MHz (Japan) 14 channels
LED: link/active
Receive sensitivity:
- Operating at 11Mbps: ≤82dBm at 8%PER and 54Mbps: ≤65dBm at 8%PER
- Data modulation type: 802.11b: BPSK, QPSK, CCK and 802.11g: OFDM
- Power: USB host 5V DC
