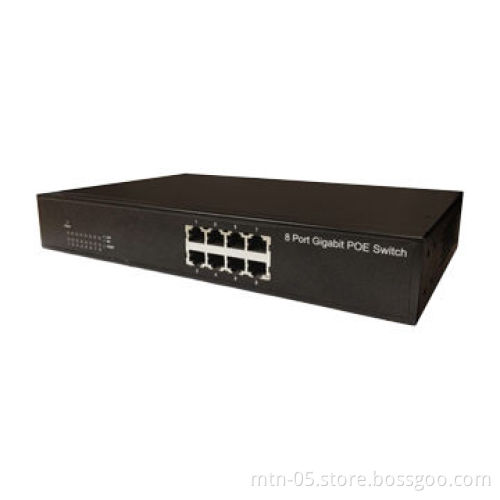

8-port Dump Switch, Supports MAC Address Automatic-learning and Automatic-aging

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features:

Each port support power output: 15.4/30W
POE power output: 150 to 200W (according to customer needs customization)
Complies with IEEE802.3, IEEE802.3u standards
8/10/100Mbps automatic-negotiation RJ45 ports supporting automatic-MDI/MDIX
Supports IEEE802.3x flow control for full duplex mode and back pressure for half-duplex mode
Supports MAC address automatic-learning and automatic-aging
LED indicators for monitoring power, link and activity
Integrates 1K MAC address table
Plastic case, desktop
External power adapter supply

Specifications:

Network media (cable) 10 base-T: UTP category 3, 4 and 5 cables (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
Switching capacity: 1.6G
LED indicators: 100Mbps link/act, other power
Transfer method: store-and-forward
MAC address learning: automatically learning, automatically update
Frame filtering and forward rate:
- 10Mbps: 14,880pps
- 100Mbps: 148,800pps
Environment:
- Operating temperatures: 0 to 40˚C (32 to 104˚F)
- Storage temperatures: -40 to 70˚C (-40 to 158˚F)
- Operating humidity range: 10 to 90% RH (non-condensing)
- Storage humidity range: 5 to 90% RH (non-condensing)
