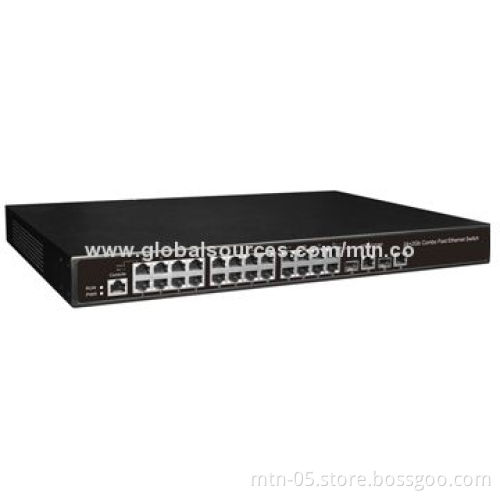

3-layer Fast Ethernet PoE Switch, Supports Firmware Upgrade, Configuration Backup & Restores by TFTP

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, L/C or Others

Product Description

Features:

Fully compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x standards
24-port 10/100Base-T/TX RJ-45 ports with auto-MDI/MDIX
2-port 10/100/1,000M combo
Supports auto-MDI/MDIX function
Supports IEEE 802.3x flow control for full duplex mode and collision-based back pressure for half duplex mode
Storage forward architecture
Ports support auto-negotiation function, automatically adjusts the transmission mode and transmission speed
Supports port VLAN, IEEE802.1Q VLAN (4K)
Supports port trunk
Provides IGMP snooping function
Supports 802.1x certification (based on port, Mac)
Supports static Apple's Mac address table management
Supports QoS, supports IEEE 802.1p priority queue
Supports port security
Supports bandwidth control, the minimum size is 100kbps
Provide SNMP management, based on web management, telnet out of band management
Supports SNMP MIB-II, Ethernet-like MIB, bridge MIB, enterprise MI
Supports RMON statistics, history, alarm and event group management
Supports firmware upgrade, configuration backup and restore by TFTP
10/100M dual speed adaptive, maximum transmission rate is 20/200Mbps (full duplex mode)
Provides speed and link/act indicator light, shows the working state structure port
Supports through the 5 types of Ethernet cable wireless access points (AP) and network surveillance cameras power supply
Standard IEEE802.3 AF/AT power supply
Transmission distance of 100m
Zero configuration feature, power is automatically supplied to the adaptive equipment
