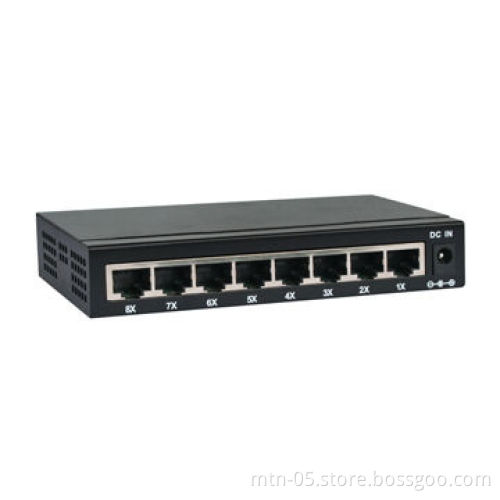

10/100M Desktop 8 Ports Switch

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Complies with IEEE802.3, IEEE802.3u standards
8 10/100Mbps automatic-negotiation RJ45 ports supporting automatic MDI/MDIX
Supports IEEE802.3x flow control for full-duplex mode and back pressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link and activity
Integrates 1K MAC address table
Steel case, desktop
External power adapter supply

Specifications:

Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Network media (cable): 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)， EIA/TIA-568 100Ù STP (maximum 100m)， 100Base-Tx: UTP category 5, 5e cable (maximum 100m)， EIA/TIA-568 100Ù STP (maximum 100m)
Switching capacity: 1.6GB
Port: 8 10/100Mbps automatic-negotiation ports
LED indicators: link/act, 100Mbps other power
Power: 110 to 260V/AC, 50Hz
Transfer method store-and-forward
MAC address learning, automatically learning and automatically update
Frame filtering and forward rate:
- 10Mbps: 14880pps
- 100Mbps: 148800pps
Dimensions: 137 x 75 x 25mm
Environmental operating temperature: 0 to 40˚C (32 to 104˚F)
Storage temperatures: -40 to 70˚C (-40 to 158˚F)，
Operating humidity range: 10 to 90% RH (non-condensing)
Storage humidity range: 5 to 90% RH (non-condensing)

Complies with IEEE802.3, IEEE802.3u standards

8 10/100Mbps automatic-negotiation RJ45 ports supporting automatic MDI/MDIX

Supports IEEE802.3x flow control for full-duplex mode and back pressure for half-duplex mode

Supports MAC address auto-learning and auto-aging

LED indicators for monitoring power, link and activity

Integrates 1K MAC address table

Steel case, desktop

External power adapter supply

Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX

Network media (cable): 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)， EIA/TIA-568 100Ù STP (maximum 100m)， 100Base-Tx: UTP category 5, 5e cable (maximum 100m)， EIA/TIA-568 100Ù STP (maximum 100m)

Switching capacity: 1.6GB

Port: 8 10/100Mbps automatic-negotiation ports

LED indicators: link/act, 100Mbps other power

Power: 110 to 260V/AC, 50Hz

Transfer method store-and-forward

MAC address learning, automatically learning and automatically update

Frame filtering and forward rate:
