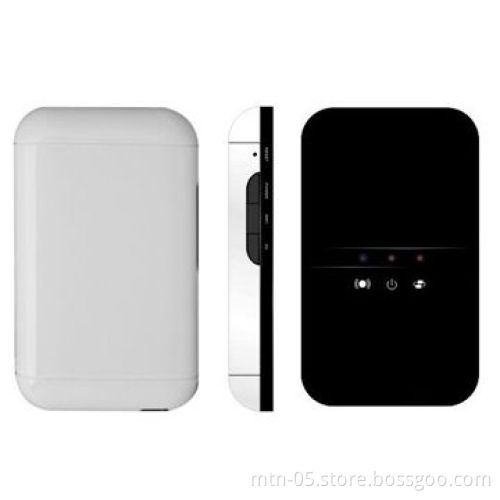

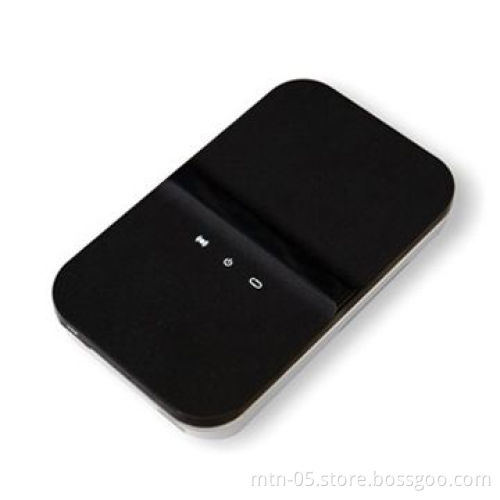

Wireless 3G Routers with SIM Card Slot and -20 to 70°C Operating Temperatures

Wireless 3G Routers with SIM Card Slot and -20 to 70°C Operating Temperatures

Get Latest Price

Payment Type:: TT, L/C or Others

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, L/C or Others

Product Description

Descriptions:

Supports WCDMA/CDMA 2,000/TD-SCDMA
1,500mAh battery capacity for long-time operatign
Portable design
Supports more than 5 users at the same time
Wireless transmission rate: 54Mbps

Technical indicators:

Supports GSM 850, 900, 1,800, 1,900MHz
Supports UMTS 2,100, 1,900, 850MHz (900 options)
Supports HSDPA/HSUPA/EDGE/GPRS data traffic

RF specifications:

Working frequency band:
- GSM: GSM 850, 900, DCS1,800, PCS1,900MHz
- UMTS: UMTS, 2,100, 1,900, 850/900MHz
IEEE802.11b/g, 2.412 to 2.484GHz
Internal antenna

Maximum transmit power:

E-GSM850 33dBm +1/-2dB
E-GSM900 33dBm +1/-2dB
DCS1,800 30dBm +1/-2dB
PCS1,900 30dBm +1/-2dB
WCDMA 2,100 24dBm +1/-3dB
WCDMA 1,900 24dBm +1/-3dB
WCDMA 850/900 24dBm +1/-3dB

Minimum control output power:

E-GSM850: 5dBm ±5dB
E-GSM900: 5dBm ±5dB
DCS1800: 0dBm ±5dB
PCS1900: 0dBm ±5dB
WCDMA 2,100: -56dBm ±9dB
WCDMA 1,900: -56dBm ±9dB
WCDMA 850/900: -56dBm ±9dB

Sensitivity:

E-GSM900: ≤106dBm
DCS1,800: ≤106dBm
PCS1,900: ≤106dBm
UMTS 2,100: ≤106dBm
UMTS 1,900: ≤106dBm
UMTS 850/900: ≤106dBm
IEEE802.11b/g
TX power, nominal 15dBm from chipset

RX sensitivity:

1Mbps: ≤98dBm
2Mbps: 7le;93dBm
5.5Mbps: ≤92dBm
18Mbps: ≤88dBm
24Mbps: ≤85dBm
36Mbps: ≤82dBm
54Mbps: ≤75dBm

Power characteristics:

Battery capacity: BP-5L, 3.7V, 1,500mAh

Structural characteristics:

Size (L × W × H): 92 × 55 × 11.9mm
Weight: 125g

Application of environment:

Operating temperatures: -20 to 70°C
Storage temperatures: -40 to 90°C
Relative humidity range: 5 to 95% RH

Supports WCDMA/CDMA 2,000/TD-SCDMA

1,500mAh battery capacity for long-time operatign

Portable design

Supports more than 5 users at the same time

Wireless transmission rate: 54Mbps

Supports GSM 850, 900, 1,800, 1,900MHz

Supports UMTS 2,100, 1,900, 850MHz (900 options)

Supports HSDPA/HSUPA/EDGE/GPRS data traffic

Working frequency band:

GSM: GSM 850, 900, DCS1,800, PCS1,900MHz
UMTS: UMTS, 2,100, 1,900, 850/900MHz

IEEE802.11b/g, 2.412 to 2.484GHz

Internal antenna

GSM: GSM 850, 900, DCS1,800, PCS1,900MHz

UMTS: UMTS, 2,100, 1,900, 850/900MHz

E-GSM850 33dBm +1/-2dB

E-GSM900 33dBm +1/-2dB

DCS1,800 30dBm +1/-2dB

PCS1,900 30dBm +1/-2dB

WCDMA 2,100 24dBm +1/-3dB

WCDMA 1,900 24dBm +1/-3dB

WCDMA 850/900 24dBm +1/-3dB

E-GSM850: 5dBm ±5dB

E-GSM900: 5dBm ±5dB

DCS1800: 0dBm ±5dB

PCS1900: 0dBm ±5dB

WCDMA 2,100: -56dBm ±9dB

WCDMA 1,900: -56dBm ±9dB

WCDMA 850/900: -56dBm ±9dB

E-GSM900: ≤106dBm

DCS1,800: ≤106dBm

PCS1,900: ≤106dBm

UMTS 2,100: ≤106dBm

UMTS 1,900: ≤106dBm

UMTS 850/900: ≤106dBm

IEEE802.11b/g

TX power, nominal 15dBm from chipset

1Mbps: ≤98dBm

2Mbps: 7le;93dBm

5.5Mbps: ≤92dBm

18Mbps: ≤88dBm

24Mbps: ≤85dBm

36Mbps: ≤82dBm

54Mbps: ≤75dBm

Battery capacity: BP-5L, 3.7V, 1,500mAh

Size (L × W × H): 92 × 55 × 11.9mm

Weight: 125g

Operating temperatures: -20 to 70°C

Storage temperatures: -40 to 90°C

Relative humidity range: 5 to 95% RH
