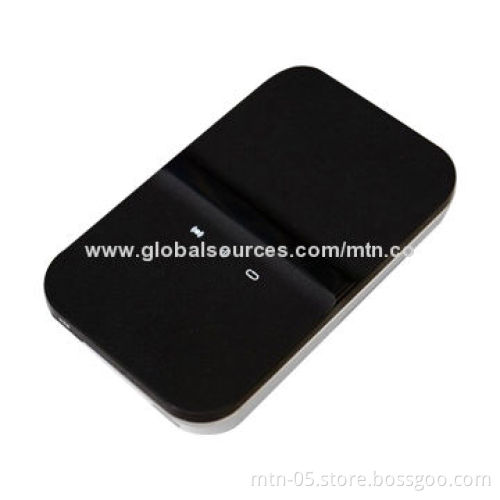

Wireless 3G Router with SIM Card Slot, High-quality

Get Latest Price

Payment Type:: TT, Western Union, L/C or Others

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, L/C or Others

Product Description

Basic description:

Supports WCDMA/CDMA2000/TD-SCDMA
1,500mAh battery capacity for long-time operating
Portable design
Supports more than 5 users at the same time
Wireless transmission rate: 54Mbps

Technical indicators:

Supports GSM850, 900, 1,800, 1,900MHz
Supports UMTS2100, 1,900, 850MHz (900MHz options)
Supports HSDPA/HSUPA/EDGE/GPRS data traffic

RF specifications:

Working frequency band:
- GSM: GSM 850, 900, DCS 1,800, PCS 1,900MHz
- UMTS: UMTS, 2,100, 1,900, 850/900MHz
- IEEE802.11b/g, 2.412 to 2.484GHz
- Internal antenna
Transmit power (maximum):
- E-GSM 850MHz 33dBm +1/-2dB
- E-GSM 900MHz 33dBm +1/-2dB
- DCS 1,800MHz 30dBm +1/-2dB
- PCS 1,900MHz 30dBm +1/-2dB
- WCDMA 2,100MHz 24dBm +1/-3dB
- WCDMA 1,900MHz 24dBm +1/-3dB
- WCDMA 850/900MHz 24dBm +1/-3dB
Control output power (minimum):
- E-GSM 850MHz: 5dBm ±5dB
- E-GSM 900MHz: 5dBm ±5dB
- DCS 1,800MHz: 0dBm ±5dB
- PCS 1,900MHz: 0dBm ±5dB
- WCDMA 2,100MHz: -56dBm ±9dB
- WCDMA 1,900MHz: -56dBm ±9dB
- WCDMA 850/900MHz: -56dBm ±9dB
Sensitivity:
- E-GSM 900: ≤106dBm
- DCS 1,800: ≤106dBm
- PCS 1,900: ≤106dBm
- UMTS 2,100: ≤106dBm
- UMTS 1,900: ≤106dBm
- UMTS 850/900: ≤106dBm
- IEEE802.11b/g
- TX power, nominal 15dBm from chipset
RX sensitivity:
- 1Mbps: ≤98dBm
- 2Mbps: 7le;93dBm
- 5.5Mbps: ≤92dBm
- 18Mbps:≤88dBm
- 24Mbps: ≤85dBm
- 36Mbps: ≤82dBm
- 54Mbps: ≤75dBm

Power characteristics:

Battery capacity: BP-5L, 3.7V, 1,500mAh

Structural characteristics:

Size (L x W x H): 92 x 55 x 11.9mm
Weight: 125g

Application of environment:

Operating temperature: -20 to 70°C
Storage temperature: -40 to 90°C
Relative humidity range: 5 to 95% RH

Supports WCDMA/CDMA2000/TD-SCDMA

1,500mAh battery capacity for long-time operating

Portable design

Supports more than 5 users at the same time

Wireless transmission rate: 54Mbps

Supports GSM850, 900, 1,800, 1,900MHz

Supports UMTS2100, 1,900, 850MHz (900MHz options)

Supports HSDPA/HSUPA/EDGE/GPRS data traffic

Working frequency band:

GSM: GSM 850, 900, DCS 1,800, PCS 1,900MHz
UMTS: UMTS, 2,100, 1,900, 850/900MHz
IEEE802.11b/g, 2.412 to 2.484GHz
Internal antenna

Transmit power (maximum):

E-GSM 850MHz 33dBm +1/-2dB
E-GSM 900MHz 33dBm +1/-2dB
DCS 1,800MHz 30dBm +1/-2dB
PCS 1,900MHz 30dBm +1/-2dB
WCDMA 2,100MHz 24dBm +1/-3dB
WCDMA 1,900MHz 24dBm +1/-3dB
WCDMA 850/900MHz 24dBm +1/-3dB

Control output power (minimum):

E-GSM 850MHz: 5dBm ±5dB
E-GSM 900MHz: 5dBm ±5dB
DCS 1,800MHz: 0dBm ±5dB
PCS 1,900MHz: 0dBm ±5dB
WCDMA 2,100MHz: -56dBm ±9dB
WCDMA 1,900MHz: -56dBm ±9dB
WCDMA 850/900MHz: -56dBm ±9dB

Sensitivity:

E-GSM 900: ≤106dBm
DCS 1,800: ≤106dBm
PCS 1,900: ≤106dBm
UMTS 2,100: ≤106dBm
UMTS 1,900: ≤106dBm
UMTS 850/900: ≤106dBm
IEEE802.11b/g
TX power, nominal 15dBm from chipset

RX sensitivity:

1Mbps: ≤98dBm
2Mbps: 7le;93dBm
5.5Mbps: ≤92dBm
18Mbps:≤88dBm
24Mbps: ≤85dBm
36Mbps: ≤82dBm
54Mbps: ≤75dBm

GSM: GSM 850, 900, DCS 1,800, PCS 1,900MHz

UMTS: UMTS, 2,100, 1,900, 850/900MHz

IEEE802.11b/g, 2.412 to 2.484GHz

Internal antenna

E-GSM 850MHz 33dBm +1/-2dB

E-GSM 900MHz 33dBm +1/-2dB

DCS 1,800MHz 30dBm +1/-2dB

PCS 1,900MHz 30dBm +1/-2dB

WCDMA 2,100MHz 24dBm +1/-3dB

WCDMA 1,900MHz 24dBm +1/-3dB

WCDMA 850/900MHz 24dBm +1/-3dB

E-GSM 850MHz: 5dBm ±5dB

E-GSM 900MHz: 5dBm ±5dB

DCS 1,800MHz: 0dBm ±5dB

PCS 1,900MHz: 0dBm ±5dB

WCDMA 2,100MHz: -56dBm ±9dB

WCDMA 1,900MHz: -56dBm ±9dB

WCDMA 850/900MHz: -56dBm ±9dB

E-GSM 900: ≤106dBm

DCS 1,800: ≤106dBm

PCS 1,900: ≤106dBm

UMTS 2,100: ≤106dBm

UMTS 1,900: ≤106dBm

UMTS 850/900: ≤106dBm

IEEE802.11b/g

TX power, nominal 15dBm from chipset

1Mbps: ≤98dBm

2Mbps: 7le;93dBm

5.5Mbps: ≤92dBm

18Mbps:≤88dBm

24Mbps: ≤85dBm

36Mbps: ≤82dBm

54Mbps: ≤75dBm

Battery capacity: BP-5L, 3.7V, 1,500mAh

Size (L x W x H): 92 x 55 x 11.9mm

Weight: 125g

Operating temperature: -20 to 70°C

Storage temperature: -40 to 90°C

Relative humidity range: 5 to 95% RH
