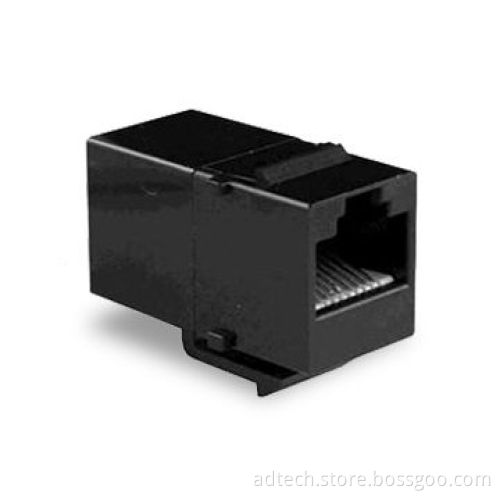

UL Approved, CAT6 RJ-45 Keystone JackNew
  • UL Approved, CAT6 RJ-45 Keystone JackNew
UL Approved, CAT6 RJ-45 Keystone JackNew

UL Approved, CAT6 RJ-45 Keystone JackNew

Get Latest Price
Payment Type:
T/T in Advance or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or L/C at Sight
Product Description
Product Description
  • Electrical:
    • Voltage rating: 125V AC (RMS)
    • Current rating: 1.5A
    • Contact resistance: 100MΩ (maximum)
    • Insulation resistance: 1,000MΩ at 500V DC (minimum)
    • Dielectric strength: 750V AC (RMS)
    • Frequency: 60Hz, 1 minute
  • Environment temperatures:
    • Storage temperatures: -40 to +85°C
    • Operating temperatures: 0 to 70°C
  • Conform to TIA/EIA 568B category 5e
  • Matched with modular plug conforming to FCC part 68, Sub partF
  • Mechanical:
  • Housing material: PC UL94V-0
  • Insert material: flame retardant ABS UL94V-0
  • PCB material: FR-4
  • Thickness: 1.6mm
  • Contact material: phosphor bronze stamp PIN T = 0.35mm
  • IDC contact material: phosphor bronze T = 0.50mm with nickel plating
  • Wire: AWG 24 to 26
  • Voltage rating: 125V AC (RMS)
  • Current rating: 1.5A
  • Contact resistance: 100MΩ (maximum)
  • Insulation resistance: 1,000MΩ at 500V DC (minimum)
  • Dielectric strength: 750V AC (RMS)
  • Frequency: 60Hz, 1 minute
  • Storage temperatures: -40 to +85°C
  • Operating temperatures: 0 to 70°C
