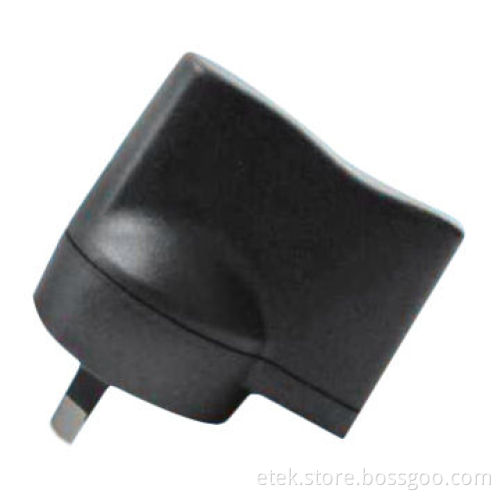

SPC, PDA, Camera, Electrical Products, Travel Charger with 90-264V Input, 5W 7.5V/1A Output

SPC, PDA, Camera, Electrical Products, Travel Charger with 90-264V Input, 5W 7.5V/1A Output

Get Latest Price

Payment Type:: Can Negotiate

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Can Negotiate

Product Description

Specifications:

Input voltage: 90 to 264V AC
Input current: 0.15A
Input frequency range: 47 to 63Hz
Output power: 5W
Output voltage range: 2.8 to 7.5V DC
Output current range: 0 to 1.0A
Output ripple and noise range: 50 to 150mV (maximum)
Operating temperatures: 0-40°C
Storage temperatures:-20- 65°C
DC cored AWG: 22#, length 1.5m, or can be customized
Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively
Size:
- 61x42.8x27mm
- 61.8X39.4X27.5mm
- 59.8X48.5X28 mm
- 59.2X49.6X40.5mm
- 60.7X35.5X24mm
Function and features:
- Over-current protection
- Over-voltage protection
- Short-circuit protection
- Thermal shutdown protection
- High reliability:
  - Strict burn-in testing: 100% full load, 40+5°C, 4hrs minimum
  - Low leakage current: 0.25mA at 264V AC
  - Withstanding voltage: 3,000V AC 1 minute 10mA maximum
  - MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
- High efficiency: meet US energy star/CEC/AS/N24665-2005 EPS energy efficiency requirements
- With on-line LED power indicator
- Eco-friendly
- Light and convenient plug-in
- Application: digital camera, CD/MP3/MP4 player, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
- Certificates: UL, PSE, CCC, FCC, KC, GS, TUV and CE
Solution provide according to customers' products

Input voltage: 90 to 264V AC

Input current: 0.15A

Input frequency range: 47 to 63Hz

Output power: 5W

Output voltage range: 2.8 to 7.5V DC

Output current range: 0 to 1.0A

Output ripple and noise range: 50 to 150mV (maximum)

Operating temperatures: 0-40°C

Storage temperatures:-20- 65°C

DC cored AWG: 22#, length 1.5m, or can be customized

Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

Size:

61x42.8x27mm
61.8X39.4X27.5mm
59.8X48.5X28 mm
59.2X49.6X40.5mm
60.7X35.5X24mm

Function and features:

Over-current protection
Over-voltage protection
Short-circuit protection
Thermal shutdown protection
High reliability:
- Strict burn-in testing: 100% full load, 40+5°C, 4hrs minimum
- Low leakage current: 0.25mA at 264V AC
- Withstanding voltage: 3,000V AC 1 minute 10mA maximum
- MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
High efficiency: meet US energy star/CEC/AS/N24665-2005 EPS energy efficiency requirements
With on-line LED power indicator
Eco-friendly
Light and convenient plug-in
Application: digital camera, CD/MP3/MP4 player, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
Certificates: UL, PSE, CCC, FCC, KC, GS, TUV and CE
