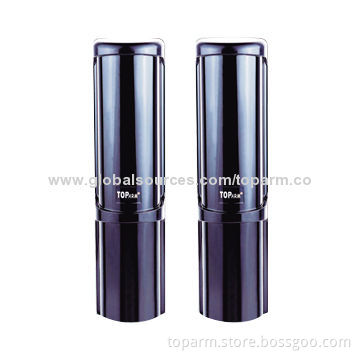

Outdoor Quad Beam Photoelectric Detectors, ASK Modulation Mode

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Features:

6 times power surplus capacity works normally even in harsh environment
Adopt ASK modulation mode, the capability of anti-jamming is ten times better than common sensors
EDC monitored circuit: differ with traditional beam, distinguish interference from different or same transmitters, thus to prevent intended intrusion
Reliable four beam detecting mode, this function can avoid false alarm caused by pets or leave
Anti-crawling design, man crawling on the ground and block the lower two beams for 4 seconds, the system will alarm
Voice indicates the alignment status, people can judge the alignment through the voice of buzzer, this is very useful under the strong light outdoor environment
Multi-level LED alignment indicator, LED lights, buzzer, traditional telescope and voltage tests, it is visual to understand the alignment, and make precise alignment
Outdoor detection range: 110m (360ft)
Power: 10.5 to 28V DC
Current: 100mA (maximum)
Temperature: -20 to +60°C
Alarm output: C type relay (NO/NC) 500mA
Tamper protection: 500mA/30V
Alignment range:
- Horizontal: ±90°
- Vertical: ±10°
Weight: 1,300g

6 times power surplus capacity works normally even in harsh environment

Adopt ASK modulation mode, the capability of anti-jamming is ten times better than common sensors

EDC monitored circuit: differ with traditional beam, distinguish interference from different or same transmitters, thus to prevent intended intrusion

Reliable four beam detecting mode, this function can avoid false alarm caused by pets or leave

Anti-crawling design, man crawling on the ground and block the lower two beams for 4 seconds, the system will alarm

Voice indicates the alignment status, people can judge the alignment through the voice of buzzer, this is very useful under the strong light outdoor environment

Multi-level LED alignment indicator, LED lights, buzzer, traditional telescope and voltage tests, it is visual to understand the alignment, and make precise alignment

Outdoor detection range: 110m (360ft)

Power: 10.5 to 28V DC

Current: 100mA (maximum)

Temperature: -20 to +60°C

Alarm output: C type relay (NO/NC) 500mA

Tamper protection: 500mA/30V

Alignment range:
