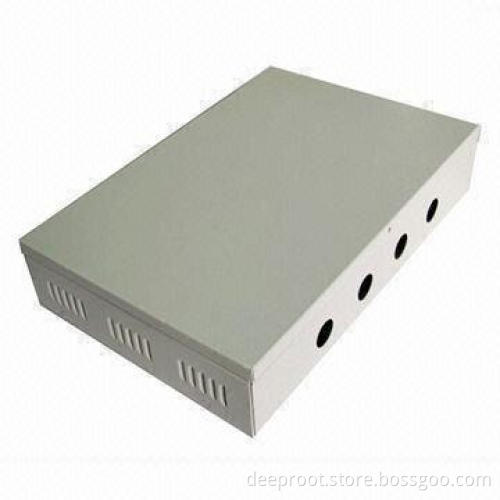

12V/10A 9CH Output Centralized CCTV Power Supply with 120W Maximum Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input voltage: 100 to 240V AC, 50/60Hz

Output output connector: 9 channel

Maximum power: 120W

Output voltage: 12V DC, ±5%

Ripple wave (mVp-p): Linear modulate: ±0.5% maximum

Temperature coefficient: ±0.02%/°C

Start time: ≤3s (240V AC input, io=100%)

Guard time: ≥20ms (240V AC input, io=100%)

Output standard: 12V/10A, 9 channels output

Override protection: 115 to 200% VA, automatic recovery

Short-circuit protection 1 channel: automatic recovery

Insulation strength: 1,500V AC/10mA, 1min

Insulation resistance: ≥30MΩ, 500V DC

Working temperature: 0 to 40°C, 10 to 90% RH

Store temperature: -20 to 60°C, 10% to 90% RH

Size: 282 x 207 x 51mm

Net weight: 1621g
