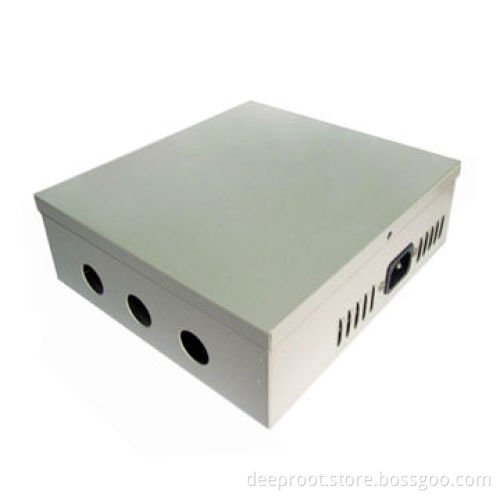

12V/5A 4CH Output Power Supply for CCTV Camera, Adjustable Voltage with 60W Maximum Output Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Every 2 outputs are 1 separate PCB

Adjustable output voltage for cameras with differentdistance

Input voltage: 100 to 240V AC, 50/60Hz

Output connector: 4 channel

Maximum power: 60W

Output voltage: 12V DC ± 5%

Ripple wave (mVp-p): <1%

Linear modulate: ±0.5% (maximum)

Temperature coefficient ±0.02%/

Start time: d3 seconds (240V AC input, IO = 100%)

Guard time: e20 minutes (240V AC input, IO = 100%)

Output standard 12V 5A, 4-channel output

Override protection: 115 to 200%VA, automatic recovery

Short-circuit protection: 1 channel: automatic recovery

Insulation strength: 1,500V AC/10mA, 1 minute

Environment working temperature: 0 to 40, 10 to 90% RH

Store temperature -20 to 60, 10 to 90% RH

Dimensions: 173 x 191 x 62mm

Net weight: 1,080g
