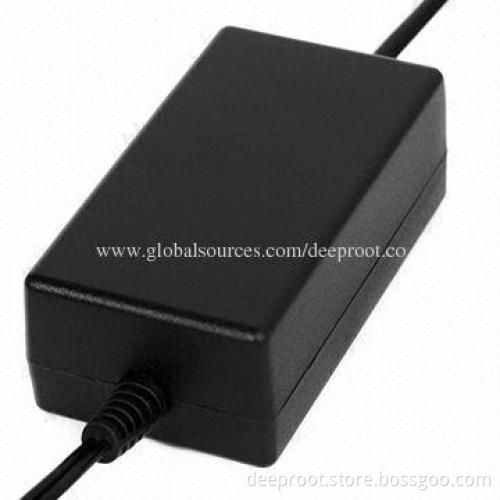

AC/DC 12V Switching Power Supply, USA, EUR, UK, AUS Plugs Available, Used for CCTV Cameras

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input connecting plug: USA/EUR/UK/AUS/others and 70cm (optional)

Input voltage: 100 to 240V AC, 50/60Hz

Output connector: 5.5 x 2.1mm/others and 90cm or more

Output voltage: 3 to 24V DC ±5%

Maximum power: 36W

Ripple wave (mVp-p): <1%

Linear modulate: ±0.5% (maximum)

Temperature coefficient: ±0.02%/°C

Start time: ≤3 seconds (240V AC input, Io = 100%)

Guard time: ≥20ms (240V AC input, Io = 100%)

Output standard: 12V/1/2/3A

Override protection range: 115 to 200%VA, automatic recovery

Short-circuit protection: 1 channel, automatic recovery

Insulation strength: 1,500V AC/10mA, 1 minute

Insulation resistance: ≥30mΩ, 500V DC

Environment working temperature: 0 to 40°C, 10 to 90% RH

Store temperature: -20 to 60°C, 10 to 90% RH

Dimensions: 95 x 51 x 32mm

Net weight: 140g
